Splash wall parts for BMW 6 Series E24 633CSi (1984)

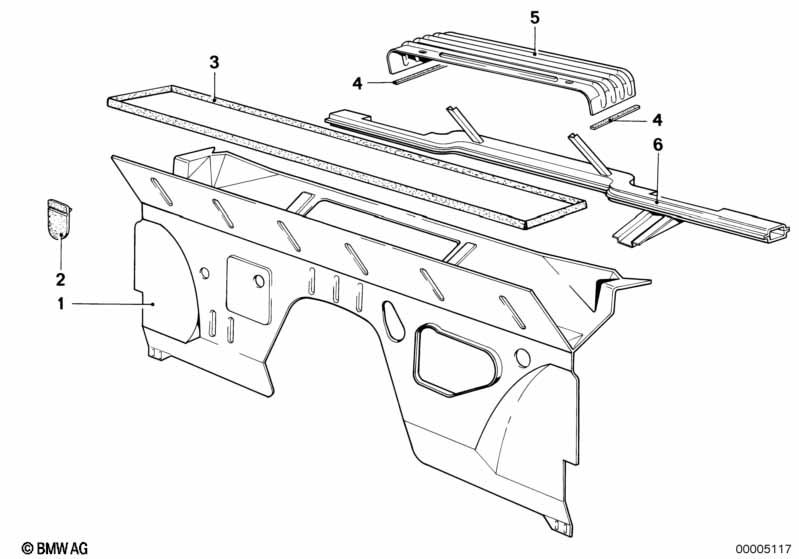

This Splash wall parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Rubber valve | 1 | 51731817760 | ENDED | Shop at ECS Tuning | |||||
| 03 | Gasket | 1 | 51231843789 | $148.89 | ENDED | Shop at ECS Tuning | ||||
| 04 | sealing | 2 | 51711839454 | $3.34 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover | 1 | 51711871032 | $44.48 | ENDED | Shop at ECS Tuning | ||||
| 06 | Carrier instrument panel | 1 | 41241927095 | $675.18 | ENDED | Shop at ECS Tuning | ||||
| 06 | Carrier instrument panel | 1 | 09/1982 | 41241912511 | $725.40 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Splash wall parts?
- This technical diagram illustrates the Splash wall parts within the Bodywork group for the 6 Series E24 633CSi produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Rubber valve (Part #51731817760).
- Which models use the hardware listed in this Splash wall parts?
- The hardware and components featured in the Splash wall parts are specific to the 6 Series E24 633CSi produced during 1984. These technical specifications ensure that parts like the Rubber valve (51731817760) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Splash wall parts assembly?
- Each item in the Splash wall parts corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Rubber valve by locating its position on the schematic, which then links to the official BMW part number 51731817760 for the Bodywork section.
