Splash wall parts for BMW 7 Series E23 732i (1982)

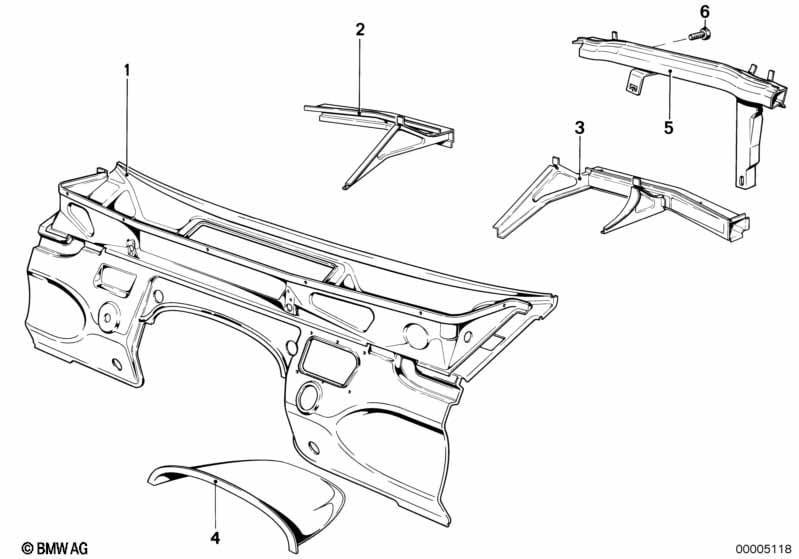

This Splash wall parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FRONT BODY PARTS | ||||||||||
| 01 | Splash wall | BASIS | 1 | 41131907879 | $502.20 | ENDED | Shop at ECS Tuning | |||
| 02 | Carrier instrument panel left | 1 | 09/1982 | 41241855947 | ENDED | Shop at ECS Tuning | ||||
| 03 | Carrier instrument panel right | 1 | 09/1982 | 41241858078 | ENDED | Shop at ECS Tuning | ||||
| 04 | Floor panel, upper part | 1 | 41121858057 | $33.48 | ENDED | Shop at ECS Tuning | ||||
| 05 | Carrier | 1 | 51711854668 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M8X16-Z3-2 | 6 | 07119915071 | $0.47 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
