Front side panel for BMW 5 Series E12 520 (1976)

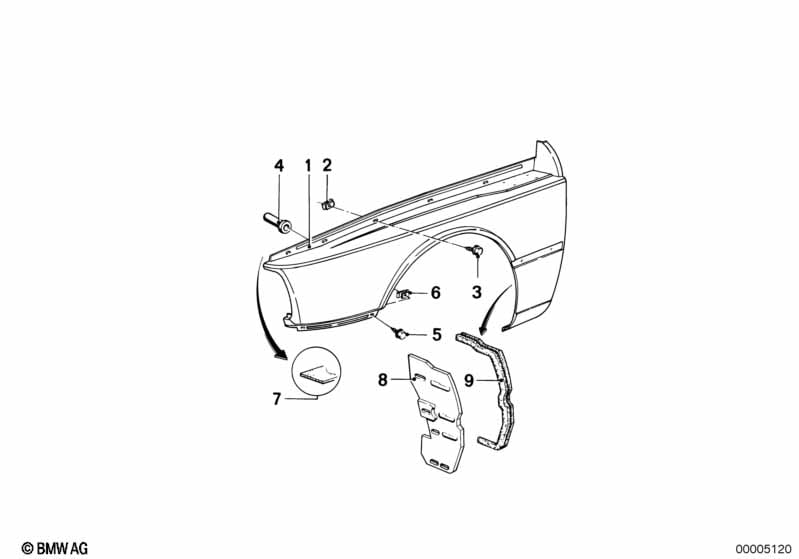

This Front side panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FRONT SIDE PANEL | ||||||||||
| 01 | Side panel, front left | 1 | 41351820467 | $239.50 | ENDED | Shop at ECS Tuning | ||||
| 01 | Side panel, front right | 1 | 41351820468 | $239.50 | ENDED | Shop at ECS Tuning | ||||
| 02 | Body nut | B6,5 | X | 32412482060 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex head screw | ST6,3X19-C-Z2 | X | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 04 | Protective plug | X | 17114670114 | $0.26 | Shop at ECS Tuning | |||||
| 05 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Body nut | ST4,8-13-ZNS3 | 2 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Filling rubber | 5000MM | 1 | 41359058743 | $42.15 | ENDED | Shop at ECS Tuning | |||
| 08 | Covering left | 1 | 51711852735 | $78.07 | ENDED | Shop at ECS Tuning | ||||
| 08 | Covering right | 1 | 51711852736 | $78.07 | ENDED | Shop at ECS Tuning | ||||
| 09 | Rubber seal | 2 | 51711809997 | $6.81 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Covering left | X | 51711852735 | $78.07 | ENDED | Shop at ECS Tuning | ||||
| -- | Covering right | X | 51711852736 | $78.07 | ENDED | Shop at ECS Tuning | ||||
| 09 | Rubber seal | 2 | 51711848829 | $6.66 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Covering left | X | 51711852735 | $78.07 | ENDED | Shop at ECS Tuning | ||||
| -- | Covering right | X | 51711852736 | $78.07 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
