Front side panel for BMW 7 Series E32 740iL (1994)

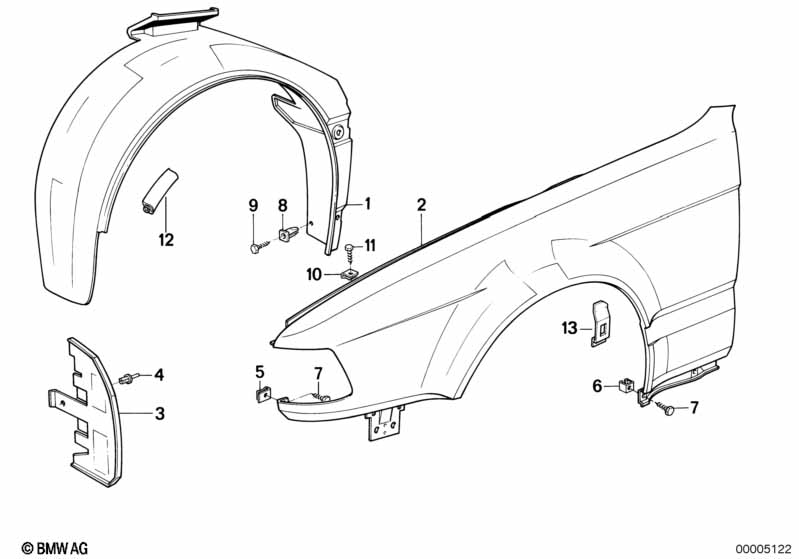

This Front side panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering left | 1 | 51711908001 | $23.52 | Shop at ECS Tuning | |||||
| 01 | Covering right | 1 | 51711908002 | $23.52 | Shop at ECS Tuning | |||||
| 02 | Side panel, front left | ECE&US | 1 | 41351963537 | $511.25 | Shop at ECS Tuning | ||||
| 02 | Side panel, front right | ECE&US | 1 | 41351963538 | $511.25 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO LATERAL TURN INDICATOR | ||||||||||
| 02 | Side panel, front left | 1 | 41351954305 | $362.70 | Shop at ECS Tuning | |||||
| 02 | Side panel, front right | 1 | 41351954306 | $362.70 | Shop at ECS Tuning | |||||
| 03 | Covering left | 1 | 51711956923 | $4.80 | Shop at ECS Tuning | |||||
| 03 | Covering right | 1 | 51711956924 | $4.80 | Shop at ECS Tuning | |||||
| 04 | Rivet | 2 | 51711936929 | $0.37 | Shop at ECS Tuning | |||||
| 05 | Body nut | ST6,3-1-ZNS3 | X | 07129904231 | Shop at ECS Tuning | |||||
| 06 | Prestol-cage | ST6,3-ZNS | 8 | 07129901748 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 06 | Body nut | ST 6,3 - 9 | 8 | 07129904216 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Hex head screw | ST6,3X19-C-Z2 | X | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 08 | Expanding nut | ST 4.8 WEISS | X | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 09 | Hex head screw | ST4,8X16-ZNS3 | X | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Plug-in nut | M5 | 4 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 11 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Hex head screw | ST4,8X13-ZN3 | 4 | 07119904285 | $0.38 | Shop at ECS Tuning | ||||
| 12 | sealing | X | 51718104493 | $2.03 | ENDED | Shop at ECS Tuning | ||||
| 13 | Fender bracket | ZN-3 | 2 | 41211950694 | $2.28 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
