Body-side frame for BMW 5 Series E28 520i (1987)

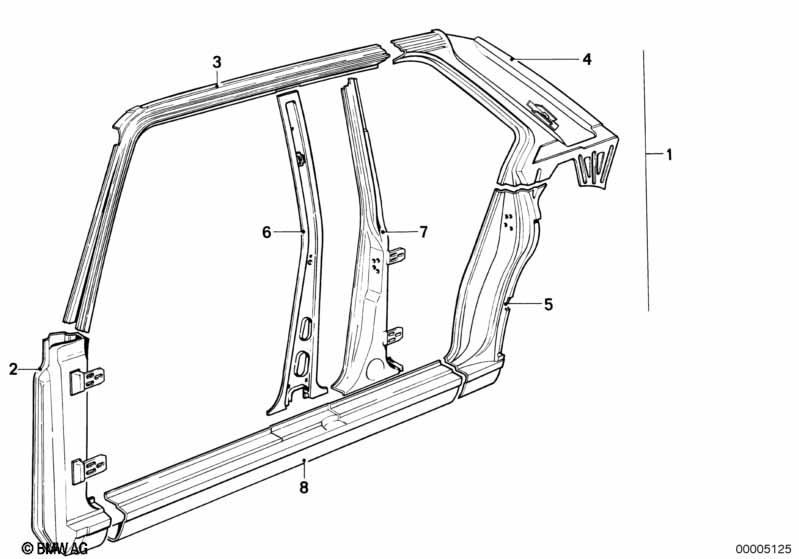

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Body-side frame left | 1 | 41001927937 | $1545.66 | ENDED | Shop at ECS Tuning | ||||
| 01 | Body-side frame right | 1 | 41001927938 | $1545.66 | ENDED | Shop at ECS Tuning | ||||
| 02 | Column front left | 1 | 41211927387 | $197.79 | ENDED | Shop at ECS Tuning | ||||
| 02 | Column front right | 1 | 41211927388 | $197.79 | ENDED | Shop at ECS Tuning | ||||
| 03 | Roof frame left | 1 | 41001820561 | $198.65 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right roof frame | 1 | 41001820562 | $198.65 | ENDED | Shop at ECS Tuning | ||||
| 04 | Column rear left | 1 | 41211874933 | $111.60 | ENDED | Shop at ECS Tuning | ||||
| 04 | Column rear right | 1 | 41211874934 | $111.60 | ENDED | Shop at ECS Tuning | ||||
| 05 | Column rear left | 1 | 41001820567 | $94.63 | Shop at ECS Tuning | |||||
| 05 | Column rear right | 1 | 41001820568 | $94.63 | ENDED | Shop at ECS Tuning | ||||
| 06 | Covering plate left | 1 | 41211927801 | $95.70 | ENDED | Shop at ECS Tuning | ||||
| 06 | Covering plate right | 1 | 41211927802 | $114.95 | ENDED | Shop at ECS Tuning | ||||
| 07 | Column center left | 1 | 41211925829 | $149.54 | Shop at ECS Tuning | |||||
| 07 | Column center right | 1 | 41211925830 | $149.54 | Shop at ECS Tuning | |||||
| 08 | Covering plate, left | 1 | 41211864973 | $214.98 | ENDED | Shop at ECS Tuning | ||||
| 08 | Covering plate, right | 1 | 41211864974 | $214.98 | Shop at ECS Tuning | |||||
