Single components for body-side frame for BMW 3 Series E21 320i (1977)

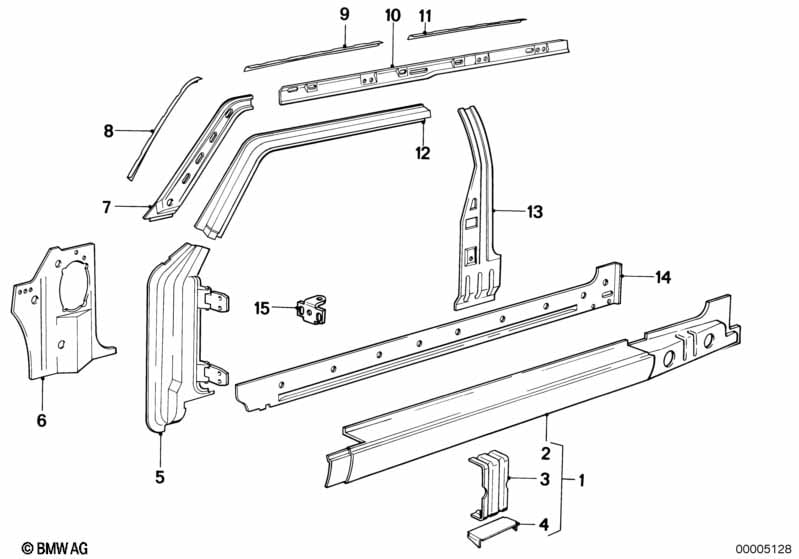

This Single components for body-side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering left | 1 | 41351881145 | $84.59 | ENDED | Shop at ECS Tuning | ||||
| 01 | Covering right | 1 | 41351881146 | $84.59 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering left | 1 | 41351881145 | $84.59 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering right | 1 | 41351881146 | $84.59 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bracket jack fixture | 2 | 41211820578 | $6.10 | ENDED | Shop at ECS Tuning | ||||
| 04 | Jack fixture | 2 | 41351846690 | $4.18 | ENDED | Shop at ECS Tuning | ||||
| 05 | Column front left | 1 | 41211875657 | $130.57 | ENDED | Shop at ECS Tuning | ||||
| 05 | Column front right | 1 | 41211875658 | $130.57 | ENDED | Shop at ECS Tuning | ||||
| 06 | Covering plate column front left | 1 | 41211846657 | $28.18 | ENDED | Shop at ECS Tuning | ||||
| 06 | Covering plate column front right | 1 | 41211846660 | $28.18 | Shop at ECS Tuning | |||||
| 07 | Covering plate roof frame left | 1 | 41221846675 | $19.64 | ENDED | Shop at ECS Tuning | ||||
| 07 | Covering plate roof frame right | 1 | 41221846676 | $19.64 | ENDED | Shop at ECS Tuning | ||||
| 08 | Connection piece left | 1 | 41221846673 | $6.58 | ENDED | Shop at ECS Tuning | ||||
| 08 | Connection piece right | 1 | 41221846674 | $6.58 | ENDED | Shop at ECS Tuning | ||||
| 09 | Connection piece left | 1 | 41221846679 | $6.81 | ENDED | Shop at ECS Tuning | ||||
| 09 | Connection piece right | 1 | 41221846680 | $6.81 | ENDED | Shop at ECS Tuning | ||||
| 10 | Covering plate roof frame left | 1 | 41221846677 | ENDED | Shop at ECS Tuning | |||||
| 10 | Covering plate roof frame right | 1 | 41221846678 | $28.18 | ENDED | Shop at ECS Tuning | ||||
| 11 | Connection piece left | 1 | 41221846681 | $7.92 | ENDED | Shop at ECS Tuning | ||||
| 11 | Connection piece right | 1 | 41221846682 | $7.92 | ENDED | Shop at ECS Tuning | ||||
| 12 | Roof frame left | 1 | 41221846671 | $53.01 | ENDED | Shop at ECS Tuning | ||||
| 12 | Right roof frame | 1 | 41221846672 | $53.01 | Shop at ECS Tuning | |||||
| 13 | Column center left | 1 | 41211846669 | $65.29 | ENDED | Shop at ECS Tuning | ||||
| 13 | Column center right | 1 | 41211846670 | ENDED | Shop at ECS Tuning | |||||
| 14 | Left side member | 1 | 41111846625 | $197.00 | ENDED | Shop at ECS Tuning | ||||
| 14 | Right side member | 1 | 41111846626 | $197.00 | ENDED | Shop at ECS Tuning | ||||
| 15 | Braket door brake | 2 | 41211865478 | $2.87 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
