Single components for body-side frame for BMW 5 Series E12 528i (1979)

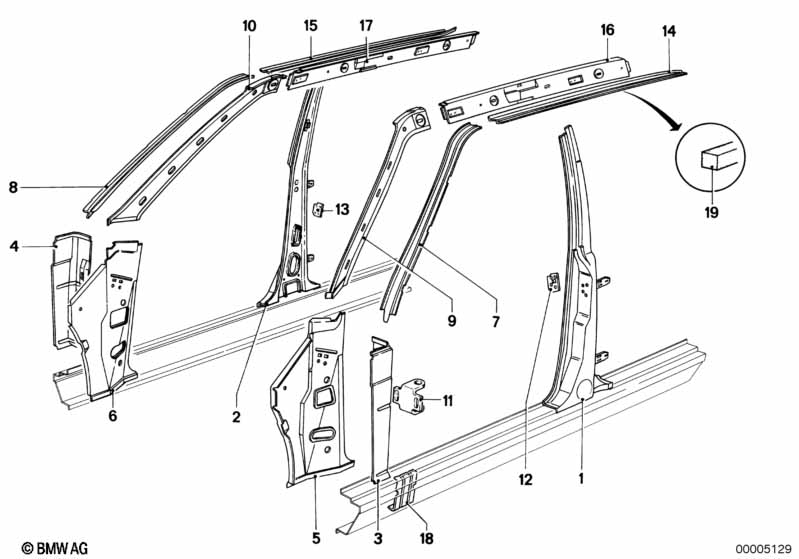

This Single components for body-side frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Column center left | 1 | 41211925829 | $149.54 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Covering left | 1 | 51131874087 | $61.43 | ENDED | Shop at ECS Tuning | ||||
| 02 | Column center right | 1 | 41211925830 | $149.54 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Covering right | 1 | 51131874088 | $61.43 | ENDED | Shop at ECS Tuning | ||||
| 03 | Reinforcement column left | 1 | 41001927391 | $41.01 | ENDED | Shop at ECS Tuning | ||||
| 04 | Reinforcement column right | 1 | 41001927392 | $41.01 | ENDED | Shop at ECS Tuning | ||||
| 05 | Covering plate | 1 | 41211820961 | $45.20 | ENDED | Shop at ECS Tuning | ||||
| 06 | Covering plate | 1 | 41211820962 | $45.20 | ENDED | Shop at ECS Tuning | ||||
| 07 | Connection plate roof front left | 1 | 41211820447 | $13.17 | ENDED | Shop at ECS Tuning | ||||
| 08 | Connection plate roof front right | 1 | 41211820448 | $13.17 | ENDED | Shop at ECS Tuning | ||||
| 09 | Covering plate roof frame left | 1 | 41211820479 | $30.13 | ENDED | Shop at ECS Tuning | ||||
| 10 | Covering plate roof frame right | 1 | 41211820480 | $30.13 | ENDED | Shop at ECS Tuning | ||||
| 11 | Braket door brake | 2 | 41211865478 | $2.87 | Shop at ECS Tuning | |||||
| 12 | Locker plate left | 1 | 51211851493 | $4.06 | Shop at ECS Tuning | |||||
| 13 | Locker plate right | 1 | 51211851494 | $4.06 | Shop at ECS Tuning | |||||
| 14 | Connection plate roof center left | 1 | 41211820443 | ENDED | Shop at ECS Tuning | |||||
| 15 | Connection plate roof center right | 1 | 41211820444 | ENDED | Shop at ECS Tuning | |||||
| 16 | Roof frame left | 1 | 41001820561 | $198.65 | ENDED | Shop at ECS Tuning | ||||
| 17 | Right roof frame | 1 | 41001820562 | $198.65 | ENDED | Shop at ECS Tuning | ||||
| 18 | Bracket jack fixture | 4 | 41211820578 | $6.10 | ENDED | Shop at ECS Tuning | ||||
| 19 | Filling rubber | 5000MM | X | 41359058743 | $42.15 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
