Single components for body-side frame for BMW 6 Series E24 628CSi (1987)

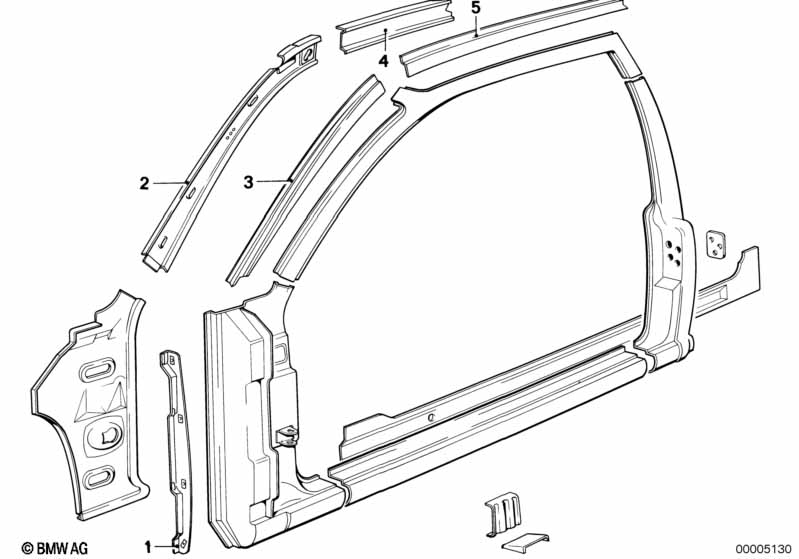

This Single components for body-side frame technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Reinforcement column left | 1 | 41211839969 | $91.23 | ENDED | Shop at ECS Tuning | ||||
| 01 | Reinforcement column right | 1 | 41211839970 | $95.70 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering plate roof frame left | 1 | 41211843993 | $114.95 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering plate roof frame right | 1 | 41211843994 | $114.95 | ENDED | Shop at ECS Tuning | ||||
| 03 | Connection plate roof front left | 1 | 41211843989 | $92.35 | ENDED | Shop at ECS Tuning | ||||
| 03 | Connection plate roof front right | 1 | 41211843990 | $92.35 | ENDED | Shop at ECS Tuning | ||||
| 04 | Covering plate,side frame center left | 1 | 41211843995 | $38.78 | ENDED | Shop at ECS Tuning | ||||
| 04 | Covering plate side frame center right | 1 | 41211843996 | $38.22 | ENDED | Shop at ECS Tuning | ||||
| 05 | Connection plate roof center left | 1 | 41211843991 | $11.64 | ENDED | Shop at ECS Tuning | ||||
| 05 | Connection plate roof center right | 1 | 41211843992 | $32.64 | ENDED | Shop at ECS Tuning |
