Body-side frame-parts for BMW 7 Series E23 728 (1979)

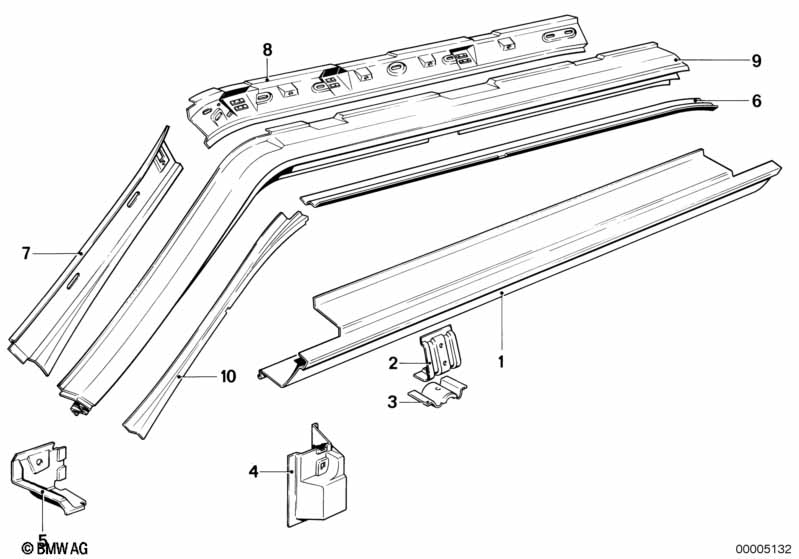

This Body-side frame-parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rocker panel left | 1 | 41351910697 | $173.71 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rocker panel right | 1 | 41351910698 | $173.71 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bracket jack fixture | 4 | 41351858707 | $3.17 | Shop at ECS Tuning | |||||
| 03 | Jack fixture | 4 | 41351858733 | ENDED | Shop at ECS Tuning | |||||
| 04 | Reinforcement column front bottom left | 1 | 41211858043 | ENDED | Shop at ECS Tuning | |||||
| 04 | Reinforcement column front bottom right | 1 | 41211858044 | ENDED | Shop at ECS Tuning | |||||
| 05 | Bracket left | 1 | 41211858689 | $24.27 | Shop at ECS Tuning | |||||
| 05 | Bracket right | 1 | 41211858690 | ENDED | Shop at ECS Tuning | |||||
| 06 | Connection plate roof center left | 1 | 41221858083 | $16.41 | ENDED | Shop at ECS Tuning | ||||
| 06 | Connection plate roof center right | 1 | 41221858084 | $16.41 | ENDED | Shop at ECS Tuning | ||||
| 07 | Covering plate roof frame left | 1 | 41221858085 | $27.90 | ENDED | Shop at ECS Tuning | ||||
| 07 | Covering plate roof frame right | 1 | 41221858086 | $27.90 | ENDED | Shop at ECS Tuning | ||||
| 08 | Covering plate roof frame left | 1 | 41221858051 | $48.83 | ENDED | Shop at ECS Tuning | ||||
| 08 | Covering plate roof frame right | 1 | 41221858052 | $48.83 | ENDED | Shop at ECS Tuning | ||||
| 09 | Roof frame left | 1 | 41221858297 | ENDED | Shop at ECS Tuning | |||||
| 09 | Right roof frame | 1 | 41221858298 | $11.36 | ENDED | Shop at ECS Tuning | ||||
| 10 | Connection plate roof front left | 1 | 41221858295 | $23.16 | ENDED | Shop at ECS Tuning | ||||
| 10 | Connection plate roof front right | 1 | 41221858296 | $23.16 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
