Single components for body-side frame for BMW 5 Series E28 525e (1987)

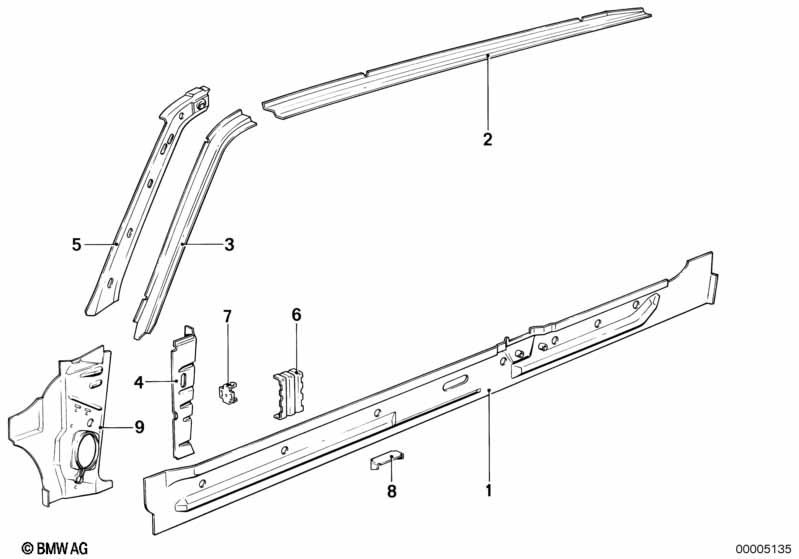

This Single components for body-side frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left side member | 1 | 41111933207 | $127.95 | ENDED | Shop at ECS Tuning | ||||
| 01 | Right side member | 1 | 41111933208 | $127.95 | ENDED | Shop at ECS Tuning | ||||
| 02 | Connection plate roof center left | 1 | 41211820443 | ENDED | Shop at ECS Tuning | |||||
| 02 | Connection plate roof center right | 1 | 41211820444 | ENDED | Shop at ECS Tuning | |||||
| 03 | Connection plate roof front left | 1 | 41211820447 | $13.17 | ENDED | Shop at ECS Tuning | ||||
| 03 | Connection plate roof front right | 1 | 41211820448 | $13.17 | ENDED | Shop at ECS Tuning | ||||
| 04 | Reinforcement column left | 1 | 41001927391 | $41.01 | ENDED | Shop at ECS Tuning | ||||
| 04 | Reinforcement column right | 1 | 41001927392 | $41.01 | ENDED | Shop at ECS Tuning | ||||
| 05 | Covering plate roof frame left | 1 | 41211820479 | $30.13 | ENDED | Shop at ECS Tuning | ||||
| 05 | Covering plate roof frame right | 1 | 41211820480 | $30.13 | ENDED | Shop at ECS Tuning | ||||
| 07 | Braket door brake | 2 | 41211865478 | $2.87 | Shop at ECS Tuning | |||||
| 07 | Braket door brake | 2 | 41211925995 | $2.95 | Shop at ECS Tuning | |||||
| 08 | Jack fixture | 4 | 09/1987 | 41351945750 | $18.97 | ENDED | Shop at ECS Tuning | |||
| 08 | Jack fixture | 4 | 09/1987 | 41351945750 | $18.97 | ENDED | Shop at ECS Tuning | |||
| 08 | Jack fixture | 4 | 09/1987 | 41351945750 | $18.97 | ENDED | Shop at ECS Tuning | |||
| 09 | Covering plate column front right | 1 | 41211886392 | $55.41 | ENDED | Shop at ECS Tuning | ||||
| 09 | Covering plate column front left | 1 | 41211900685 | $55.67 | ENDED | Shop at ECS Tuning |
