Single components for body-side frame for BMW 3 Series E30 320i (1990)

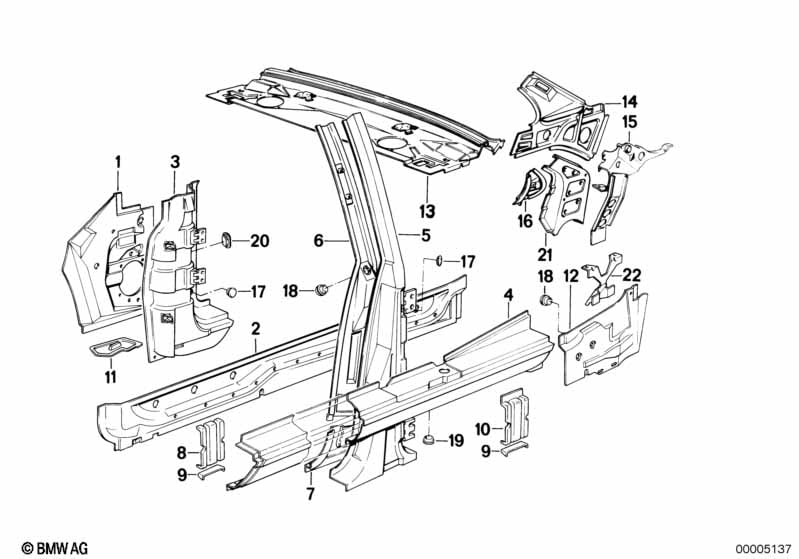

This Single components for body-side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering plate left | 1 | 41211940063 | $24.68 | ENDED | Shop at ECS Tuning | ||||
| 01 | Covering plate right | 1 | 41211940064 | $24.68 | ENDED | Shop at ECS Tuning | ||||
| 02 | Left side member | 1 | 41111913087 | $80.05 | Shop at ECS Tuning | |||||
| 02 | Right side member | 1 | 41111913088 | $80.05 | Shop at ECS Tuning | |||||
| 03 | Column front left | 1 | 09/1984 | 41211959003 | $106.49 | ENDED | Shop at ECS Tuning | |||
| 03 | Column front right | 1 | 09/1984 | 41211959004 | $106.49 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering left | 1 | 41351936505 | $83.59 | ENDED | Shop at ECS Tuning | ||||
| 04 | Covering right | 1 | 41351936506 | $83.59 | ENDED | Shop at ECS Tuning | ||||
| 05 | Column center left w.covering plate | 1 | 41211947459 | $156.24 | ENDED | Shop at ECS Tuning | ||||
| 05 | Column center right w.covering plate | 1 | 41211947460 | $131.37 | Shop at ECS Tuning | |||||
| 06 | Column center left w.covering plate | 1 | 41211947459 | $156.24 | ENDED | Shop at ECS Tuning | ||||
| 06 | Column center right w.covering plate | 1 | 41211947460 | $131.37 | Shop at ECS Tuning | |||||
| 07 | Covering plate left | 1 | 41211933435 | $46.59 | ENDED | Shop at ECS Tuning | ||||
| 07 | Covering plate right | 1 | 41211933436 | $30.41 | Shop at ECS Tuning | |||||
| 08 | Bracket jack fixture | 2 | 41351913760 | $5.42 | Shop at ECS Tuning | |||||
| 09 | Jack fixture | 4 | 41351913759 | $5.34 | Shop at ECS Tuning | |||||
| 10 | Bracket jack fixture | 2 | 41351916470 | $4.20 | ENDED | Shop at ECS Tuning | ||||
| 11 | Locking plug left | 1 | 51711916123 | $1.77 | Shop at ECS Tuning | |||||
| 11 | Locking plug right | 1 | 51711916124 | $1.77 | Shop at ECS Tuning | |||||
| 12 | Left side member | 1 | 41111925549 | $23.10 | ENDED | Shop at ECS Tuning | ||||
| 12 | Right side member | 1 | 41111935854 | $22.38 | ENDED | Shop at ECS Tuning | ||||
| 13 | Partition trunk | 1 | 09/1987 | 41138100404 | $321.06 | ENDED | Shop at ECS Tuning | |||
| 14 | Rear window frame left | 1 | 09/1986 | 41321966473 | $84.54 | ENDED | Shop at ECS Tuning | |||
| 14 | Rear window frame right | 1 | 09/1986 | 41321966474 | $84.54 | ENDED | Shop at ECS Tuning | |||
| 15 | Hinge notch left | 1 | 41621911973 | $32.36 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hinge notch right | 1 | 41621911974 | $17.80 | ENDED | Shop at ECS Tuning | ||||
| 16 | Rear window frame left | 1 | 41321916471 | $14.17 | ENDED | Shop at ECS Tuning | ||||
| 16 | Rear window frame right | 1 | 41321916472 | $14.17 | ENDED | Shop at ECS Tuning | ||||
| 17 | Blind plug | D=23MM | X | 51711904843 | $0.58 | Shop at ECS Tuning | ||||
| 18 | Blind plug | D=20MM | 6 | 51711801066 | $0.23 | Shop at ECS Tuning | ||||
| 19 | Blind plug | D=14MM | 2 | 33111236826 | $0.23 | Shop at ECS Tuning | ||||
| 19 | Covering cap | D=16,5MM | 6 | 51711839321 | $0.26 | Shop at ECS Tuning | ||||
| 20 | Blind plug | 33X42,5 | X | 09/1984 | 51711911996 | $0.54 | Shop at ECS Tuning | |||
| 22 | Braket fuel pump | 1 | 41111979708 | $3.58 | ENDED | Shop at ECS Tuning |
