Body-side frame for BMW 7 Series E32 730iL (1994)

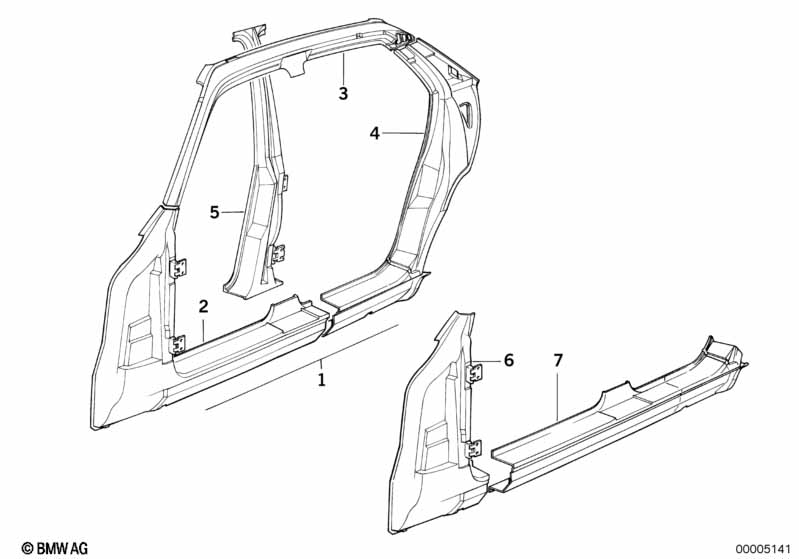

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body-side frame left | 1 | 41001969327 | $1428.48 | ENDED | Shop at ECS Tuning | ||||
| 01 | Body-side frame right | 1 | 41001969328 | $1428.48 | ENDED | Shop at ECS Tuning | ||||
| 02 | Column front left | 1 | 41001974985 | $353.77 | ENDED | Shop at ECS Tuning | ||||
| 02 | Column front right | 1 | 41001974986 | $93.27 | ENDED | Shop at ECS Tuning | ||||
| 03 | Roof frame left | 1 | 41001969457 | $411.80 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right roof frame | 1 | 41001969458 | $411.80 | ENDED | Shop at ECS Tuning | ||||
| 04 | Column rear left | 1 | 41001969453 | $376.90 | ENDED | Shop at ECS Tuning | ||||
| 04 | Column rear right | 1 | 41001969454 | $376.90 | ENDED | Shop at ECS Tuning | ||||
| 05 | Column center left | 1 | 41001938049 | $93.27 | ENDED | Shop at ECS Tuning | ||||
| 05 | Column center right | 1 | 41001938050 | $86.80 | ENDED | Shop at ECS Tuning | ||||
| 06 | Column front left | 1 | 41001938045 | $66.85 | ENDED | Shop at ECS Tuning | ||||
| 06 | Column front right | 1 | 41001938046 | $69.19 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rocker panel left | 1 | 41001969455 | $332.53 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rocker panel right | 1 | 41001969456 | $332.53 | ENDED | Shop at ECS Tuning |
