Body-side frame/partition for BMW 7 Series E32 730i (1994)

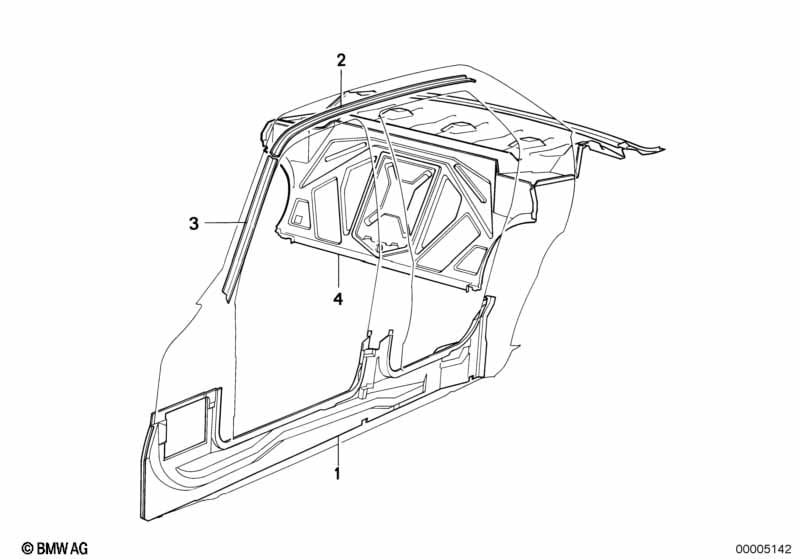

This Body-side frame/partition technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left side member | 1 | 41111954677 | $212.04 | Shop at ECS Tuning | |||||
| 01 | Right side member | 1 | 41111954678 | $212.04 | ENDED | Shop at ECS Tuning | ||||
| 02 | Connection plate roof center left | 1 | 41221963145 | $42.90 | ENDED | Shop at ECS Tuning | ||||
| 02 | Connection plate roof center right | 1 | 41221963146 | $114.94 | ENDED | Shop at ECS Tuning | ||||
| 03 | Connection plate roof front left | 1 | 41321963147 | $19.52 | ENDED | Shop at ECS Tuning | ||||
| 03 | Connection plate roof front right | 1 | 41321963148 | $19.52 | ENDED | Shop at ECS Tuning | ||||
| 04 | Partition trunk | 1 | 41131948106 | $484.34 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
