Body-side frame/partition for BMW 5 Series E34 525i (1990)

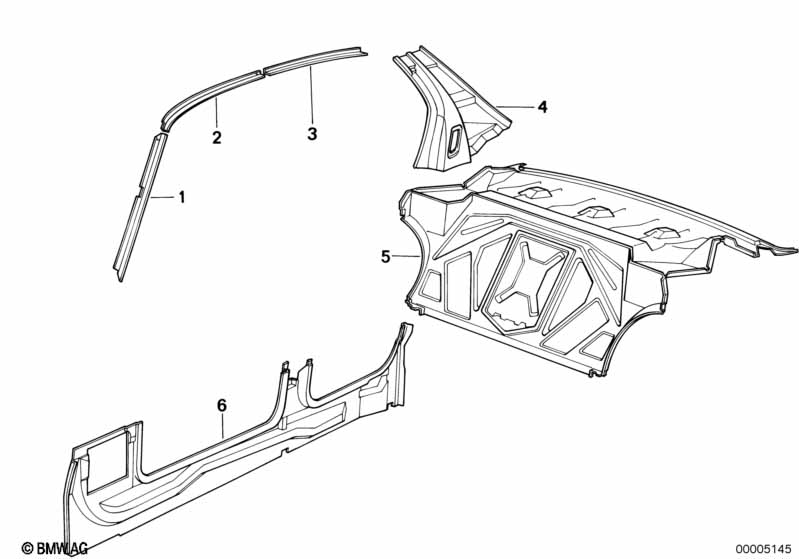

This Body-side frame/partition technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connection plate roof front left | 1 | 41321973881 | $19.53 | ENDED | Shop at ECS Tuning | ||||
| 01 | Connection plate roof front right | 1 | 41321973882 | $19.53 | ENDED | Shop at ECS Tuning | ||||
| 02 | Connection plate roof front left | 1 | 41318110493 | $19.84 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Connection plate roof center left | 1 | 41228110491 | $13.60 | ENDED | Shop at ECS Tuning | ||||
| 02 | Connection plate roof front right | 1 | 41318110494 | $19.84 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Connection plate roof center right | 1 | 41228110492 | $13.60 | ENDED | Shop at ECS Tuning | ||||
| 03 | Connection plate roof center left | 1 | 41228110491 | $13.60 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Connection plate roof front left | 1 | 41318110493 | $19.84 | ENDED | Shop at ECS Tuning | ||||
| 03 | Connection plate roof center right | 1 | 41228110492 | $13.60 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Connection plate roof front right | 1 | 41318110494 | $19.84 | ENDED | Shop at ECS Tuning | ||||
| 04 | Left interior column C | 1 | 41321973879 | $82.86 | ENDED | Shop at ECS Tuning | ||||
| 04 | Right interior column C | 1 | 41321973880 | $82.86 | ENDED | Shop at ECS Tuning | ||||
| 05 | Partition trunk | 1 | 41131946376 | $510.12 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Through-loading facility |
=Yes |
|||||||||
| 05 | Partition trunk | 1 | 41138110650 | $556.88 | ENDED | Shop at ECS Tuning | ||||
| 06 | Left side member | 1 | 41111946525 | $166.10 | ENDED | Shop at ECS Tuning | ||||
| 06 | Right side member | 1 | 41111946526 | $166.10 | ENDED | Shop at ECS Tuning | ||||
