Floor panel trunk/lateral parts for BMW 5 Series E12 525 (1981)

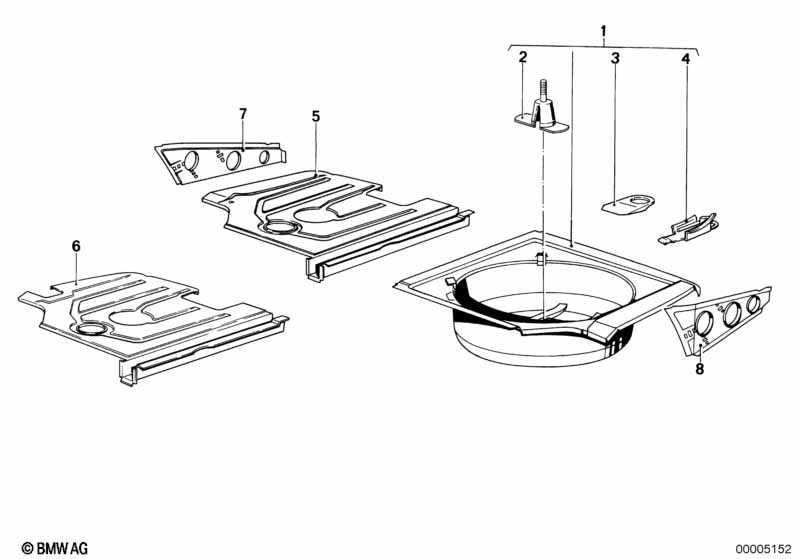

This Floor panel trunk/lateral parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor panel trunk lateral | BASIS | 1 | 41121932991 | $266.72 | ENDED | Shop at ECS Tuning | |||
| 02 | Bracket for spare wheel | 1 | 41121909076 | $10.25 | ENDED | Shop at ECS Tuning | ||||
| 04 | Towing suspension | 1 | 05/1981 | 41121881766 | $31.21 | ENDED | Shop at ECS Tuning | |||
| 06 | Floor panel trunk lateral | BASIS | 1 | 08/1976 | 41121934418 | $155.12 | ENDED | Shop at ECS Tuning | ||
| 07 | Partition right | 1 | 08/1976 | 41131848270 | $27.71 | Shop at ECS Tuning | ||||
| 08 | Partition left | 1 | 41131820497 | $23.40 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 525 Floor panel trunk/lateral parts?
- This technical diagram illustrates the Floor panel trunk/lateral parts within the Bodywork group for the 5 Series E12 525 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Floor panel trunk lateral (Part #41121932991).
- Which models use the hardware listed in this Floor panel trunk/lateral parts?
- The hardware and components featured in the Floor panel trunk/lateral parts are specific to the 5 Series E12 525 produced during 1981. These technical specifications ensure that parts like the Floor panel trunk lateral (41121932991) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Floor panel trunk/lateral parts assembly?
- Each item in the Floor panel trunk/lateral parts corresponds to the numbered list below the illustration. For the 5 Series E12 525, you can identify the Floor panel trunk lateral by locating its position on the schematic, which then links to the official BMW part number 41121932991 for the Bodywork section.
