Floor parts rear exterior for BMW 7 Series E23 728 (1979)

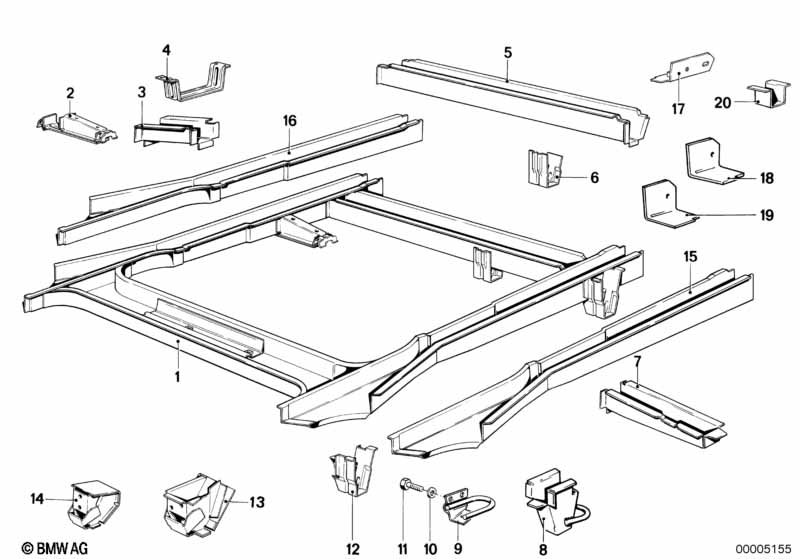

This Floor parts rear exterior technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body base frame rear | 1 | 41001888050 | $257.80 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bracket exhaust, rear | 1 | 41111855931 | $23.12 | ENDED | Shop at ECS Tuning | ||||
| 03 | Reinforcement right | 1 | 41111862999 | $18.41 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bow | 1 | 41121858049 | $8.37 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cross member | 1 | 41111855932 | $74.49 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket fuel tank inner rear | 1 | 41111852360 | $20.42 | ENDED | Shop at ECS Tuning | ||||
| 07 | Reinforcement trunk rear left | 1 | 41121862997 | $12.83 | ENDED | Shop at ECS Tuning | ||||
| 13 | Bracket fuel tank front | 1 | 41111858055 | $18.41 | ENDED | Shop at ECS Tuning | ||||
| 14 | Bracket fuel tank front | 1 | 41111858046 | $16.85 | ENDED | Shop at ECS Tuning | ||||
| 15 | Rear left side member | 1 | 41111867953 | $118.36 | ENDED | Shop at ECS Tuning | ||||
| 16 | Right rear side member | 1 | 41111867954 | $118.36 | ENDED | Shop at ECS Tuning | ||||
| 20 | Bracket fuel tank ventilation | 1 | 41121867955 | ENDED | Shop at ECS Tuning |
