Mounting parts for trunk floor panel for BMW 5 Series E12 525 (1981)

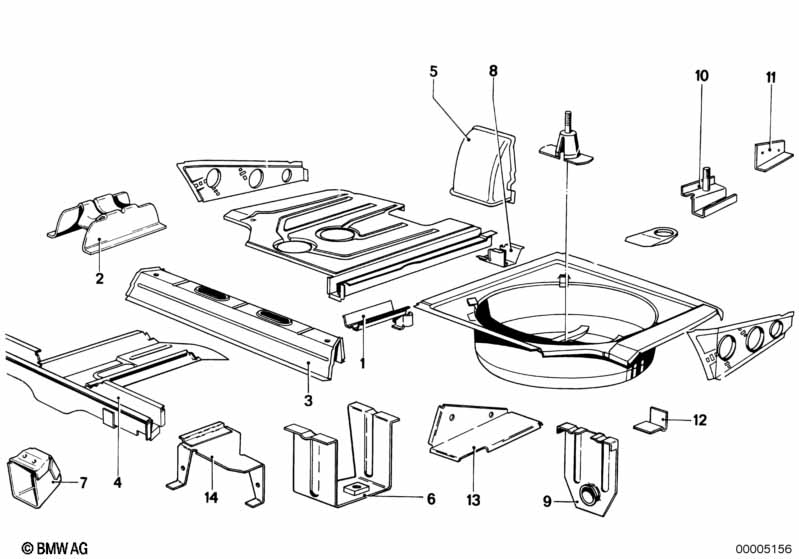

This Mounting parts for trunk floor panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust support | 1 | 41121823493 | $6.34 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cross member | 1 | 41111820268 | $51.06 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cross member rear axle carrier | 1 | 41121823084 | $87.21 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bracket fuel tank front | 1 | 08/1976 | 41121848271 | $13.28 | ENDED | Shop at ECS Tuning | |||
| 08 | Bracket fuel tank inner rear | 1 | 41121820964 | $12.28 | ENDED | Shop at ECS Tuning | ||||
| 09 | Holder | 1 | 41121831992 | $3.67 | Shop at ECS Tuning | |||||
| 10 | Jack fixture | 1 | 41121826706 | $6.38 | Shop at ECS Tuning | |||||
| 11 | Jack fixture | 1 | 41121826707 | $3.85 | Shop at ECS Tuning | |||||
| 12 | Support | 1 | 41121820263 | $11.51 | ENDED | Shop at ECS Tuning | ||||
| 13 | Sheet | 1 | 41121831993 | $5.69 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 525 Mounting parts for trunk floor panel?
- This technical diagram illustrates the Mounting parts for trunk floor panel within the Bodywork group for the 5 Series E12 525 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust support (Part #41121823493).
- Which models use the hardware listed in this Mounting parts for trunk floor panel?
- The hardware and components featured in the Mounting parts for trunk floor panel are specific to the 5 Series E12 525 produced during 1981. These technical specifications ensure that parts like the Exhaust support (41121823493) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mounting parts for trunk floor panel assembly?
- Each item in the Mounting parts for trunk floor panel corresponds to the numbered list below the illustration. For the 5 Series E12 525, you can identify the Exhaust support by locating its position on the schematic, which then links to the official BMW part number 41121823493 for the Bodywork section.
