Floor parts rear exterior for BMW 3 Series E21 316 (1983)

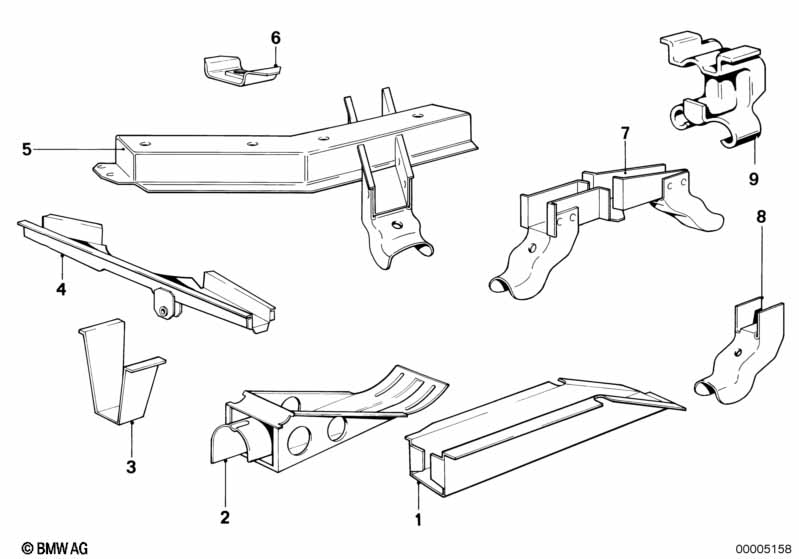

This Floor parts rear exterior technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left side member | 1 | 41111846623 | $20.09 | Shop at ECS Tuning | |||||
| 01 | Right side member | 1 | 41111846624 | $20.09 | Shop at ECS Tuning | |||||
| 02 | Reinforcement floor panel | 1 | 41121846647 | ENDED | Shop at ECS Tuning | |||||
| 03 | Bracket fuel tank rear left | 1 | 08/1977 | 41121860327 | $4.07 | ENDED | Shop at ECS Tuning | |||
| 03 | Bracket fuel tank rear right | 1 | 08/1977 | 41121860328 | $3.96 | Shop at ECS Tuning | ||||
| 04 | Cross member rear axle carrier | 1 | 41111846622 | $91.23 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rear left side member | 1 | 41111847431 | $54.41 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket fuel tank front | 4 | 41121860329 | $8.59 | Shop at ECS Tuning | |||||
| 07 | Bracket exhaust, rear left | 1 | 41111847428 | $16.27 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bracket exhaust, rear | 2 | 41111847429 | $11.72 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bracket exhaust, rear | 1 | 41121864929 | $12.50 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 316 Floor parts rear exterior?
- This technical diagram illustrates the Floor parts rear exterior within the Bodywork group for the 3 Series E21 316 produced during 1983. It provides a detailed exploded view of the components, identifying key parts such as the Left side member (Part #41111846623).
- Which models use the hardware listed in this Floor parts rear exterior?
- The hardware and components featured in the Floor parts rear exterior are specific to the 3 Series E21 316 produced during 1983. These technical specifications ensure that parts like the Left side member (41111846623) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Floor parts rear exterior assembly?
- Each item in the Floor parts rear exterior corresponds to the numbered list below the illustration. For the 3 Series E21 316, you can identify the Left side member by locating its position on the schematic, which then links to the official BMW part number 41111846623 for the Bodywork section.
