Floor parts rear interior for BMW 7 Series E23 732i (1982)

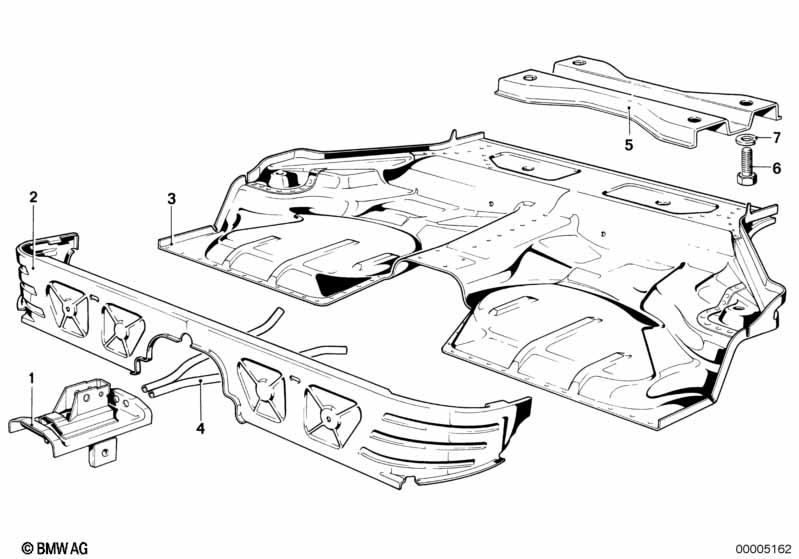

This Floor parts rear interior technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket for hand brake | 1 | 08/1979 | 41121872233 | $70.87 | ENDED | Shop at ECS Tuning | |||
| 02 | Seat carrier | 1 | 41111858280 | $130.57 | ENDED | Shop at ECS Tuning | ||||
| 03 | Floor panel, rear | 1 | 41121858899 | $661.23 | ENDED | Shop at ECS Tuning | ||||
| 04 | Pipe | 1 | 09/1981 | 41121900116 | ENDED | Shop at ECS Tuning | ||||
| 05 | Carrier | 1 | 08/1979 | 51711864869 | $24.63 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X16U2-8.8ZNS3 | 4 | 08/1979 | 07119904279 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 732i Floor parts rear interior?
- This technical diagram illustrates the Floor parts rear interior within the Bodywork group for the 7 Series E23 732i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket for hand brake (Part #41121872233).
- Which models use the hardware listed in this Floor parts rear interior?
- The hardware and components featured in the Floor parts rear interior are specific to the 7 Series E23 732i produced during 1982. These technical specifications ensure that parts like the Supporting bracket for hand brake (41121872233) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Floor parts rear interior assembly?
- Each item in the Floor parts rear interior corresponds to the numbered list below the illustration. For the 7 Series E23 732i, you can identify the Supporting bracket for hand brake by locating its position on the schematic, which then links to the official BMW part number 41121872233 for the Bodywork section.
