Mounting parts for trunk floor panel for BMW 6 Series E24 633CSi (1984)

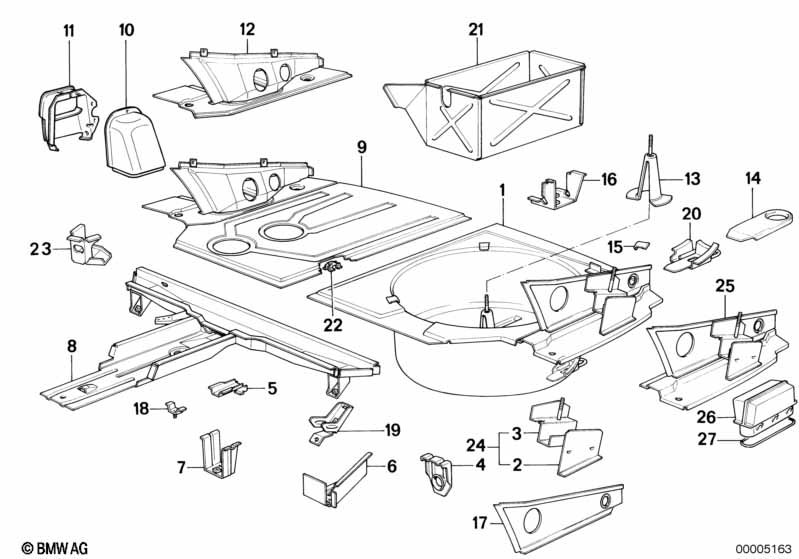

This Mounting parts for trunk floor panel technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Support | 1 | 11/1985 | 41121843941 | $22.60 | ENDED | Shop at ECS Tuning | |||
| 03 | Jack fixture | 1 | 11/1985 | 41121826706 | $6.38 | Shop at ECS Tuning | ||||
| 04 | Holder | 1 | 41121831992 | $3.67 | Shop at ECS Tuning | |||||
| 06 | Sheet | 1 | 41121831993 | $5.69 | ENDED | Shop at ECS Tuning | ||||
| 07 | Support fuel tank | 1 | 41121831994 | $8.15 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cross member rear axle carrier | 1 | 12/1983 | 41121922009 | $248.59 | Shop at ECS Tuning | ||||
| 12 | Partition trunk rear right | 1 | 11/1985 | 41121869276 | $218.74 | ENDED | Shop at ECS Tuning | |||
| 12 | Lateral trim panel right | 1 | 11/1985 | 41121942042 | $218.74 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Breather | 1 | 11/1985 | 64221937232 | $22.83 | ENDED | Shop at ECS Tuning | |||
| 14 | Towing bracket | 1 | 41125672116 | $6.81 | ENDED | Shop at ECS Tuning | ||||
| 15 | Support | 3 | 41121820263 | $11.51 | ENDED | Shop at ECS Tuning | ||||
| 16 | Bracket fuel tank inner rear | 1 | 09/1981 | 41121976604 | $20.90 | ENDED | Shop at ECS Tuning | |||
| 16 | Bracket fuel tank inner rear | 1 | 09/1981 | 41121976604 | $20.90 | ENDED | Shop at ECS Tuning | |||
| 17 | Partition left | 1 | 41131820497 | $23.40 | Shop at ECS Tuning | |||||
| 18 | Brake pipe bracket | 1 | 05/1982 | 41121881456 | $2.71 | ENDED | Shop at ECS Tuning | |||
| 20 | Towing suspension | 1 | 05/1982 | 41121881766 | $31.21 | ENDED | Shop at ECS Tuning | |||
| 22 | Bow | 1 | 05/1982 | 18211246056 | $2.88 | Shop at ECS Tuning | ||||
| 23 | Bracket fuel tank rear right | 1 | 41121935879 | $12.14 | ENDED | Shop at ECS Tuning | ||||
| 25 | Lateral trim panel left | 1 | 11/1985 | 41121942041 | $218.74 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Breather | 1 | 11/1985 | 64221937232 | $22.83 | ENDED | Shop at ECS Tuning | |||
| 26 | Breather | 1 | 64221937232 | $22.83 | ENDED | Shop at ECS Tuning | ||||
| 27 | Gasket | 1 | 64221937692 | $1.97 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Mounting parts for trunk floor panel?
- This technical diagram illustrates the Mounting parts for trunk floor panel within the Bodywork group for the 6 Series E24 633CSi produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Support (Part #41121843941).
- Which models use the hardware listed in this Mounting parts for trunk floor panel?
- The hardware and components featured in the Mounting parts for trunk floor panel are specific to the 6 Series E24 633CSi produced during 1984. These technical specifications ensure that parts like the Support (41121843941) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mounting parts for trunk floor panel assembly?
- Each item in the Mounting parts for trunk floor panel corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Support by locating its position on the schematic, which then links to the official BMW part number 41121843941 for the Bodywork section.
