Partition trunk/wheel housing for BMW 5 Series E28 528e (1987)
This Partition trunk/wheel housing technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat carrier | 1 | 41111834178 | $97.73 | ENDED | Shop at ECS Tuning | ||||
| 02 | Pipe | 1 | 41121879536 | $15.74 | ENDED | Shop at ECS Tuning | ||||
| 03 | Supporting bracket for hand brake | 1 | 41121881134 | $37.90 | ENDED | Shop at ECS Tuning | ||||
| 04 | Partition trunk | 1 | 41131819406 | $160.70 | ENDED | Shop at ECS Tuning | ||||
| 05 | Left rear inner wheelhouse | 1 | 41141900757 | $386.14 | ENDED | Shop at ECS Tuning | ||||
| 05 | Right rear inner wheelhouse | 1 | 41141900758 | $386.14 | Shop at ECS Tuning | |||||
| 06 | Corner plate wheel housing rear left | 1 | 41141914005 | $22.60 | ENDED | Shop at ECS Tuning | ||||
| 06 | Corner plate wheel housing rear right | 1 | 41141914006 | $22.60 | ENDED | Shop at ECS Tuning | ||||
| 07 | Wheel arch outer rear left | 1 | 41141816315 | $150.29 | ENDED | Shop at ECS Tuning | ||||
| 07 | Wheel arch outer rear right | 1 | 41141816316 | $183.11 | ENDED | Shop at ECS Tuning | ||||
| 08 | Covering left | 1 | 51711877813 | $7.98 | ENDED | Shop at ECS Tuning | ||||
| 08 | Covering right | 1 | 51711877814 | $7.98 | ENDED | Shop at ECS Tuning | ||||
| 09 | Clamp | 4 | 51327441122 | $0.30 | Shop at ECS Tuning | |||||
| 10 | Console left | 1 | 41121945705 | $8.26 | Shop at ECS Tuning | |||||
| 11 | Console right | 1 | 41121945706 | $7.69 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 528e Partition trunk/wheel housing?

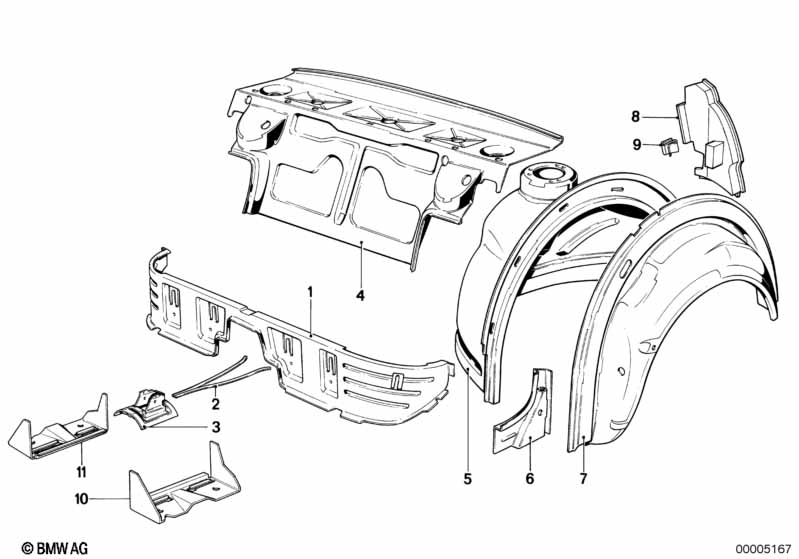

- This technical diagram illustrates the Partition trunk/wheel housing within the Bodywork group for the 5 Series E28 528e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Seat carrier (Part #41111834178).
- Which models use the hardware listed in this Partition trunk/wheel housing?
- The hardware and components featured in the Partition trunk/wheel housing are specific to the 5 Series E28 528e produced during 1987. These technical specifications ensure that parts like the Seat carrier (41111834178) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Partition trunk/wheel housing assembly?
- Each item in the Partition trunk/wheel housing corresponds to the numbered list below the illustration. For the 5 Series E28 528e, you can identify the Seat carrier by locating its position on the schematic, which then links to the official BMW part number 41111834178 for the Bodywork section.
