Floor parts rear exterior for BMW 5 Series E28 524td (1984)

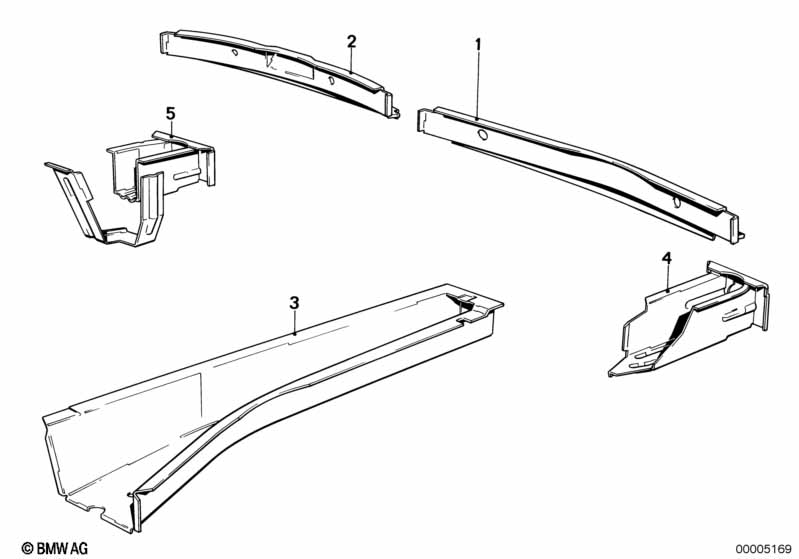

This Floor parts rear exterior technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cross member left | 1 | 41111979033 | $298.30 | Shop at ECS Tuning | |||||
| 02 | Cross member right | 1 | 41111979034 | $298.30 | ENDED | Shop at ECS Tuning | ||||
| 03 | Support shock absorber rear | 1 | 41121881137 | $18.37 | Shop at ECS Tuning | |||||
| 04 | Support shock absorber rear | 1 | 41121881135 | $35.74 | Shop at ECS Tuning | |||||
| 05 | Support shock absorber rear | 1 | 41121881136 | $33.26 | Shop at ECS Tuning |
