Mounting parts for trunk floor panel for BMW 5 Series E28 528e (1987)

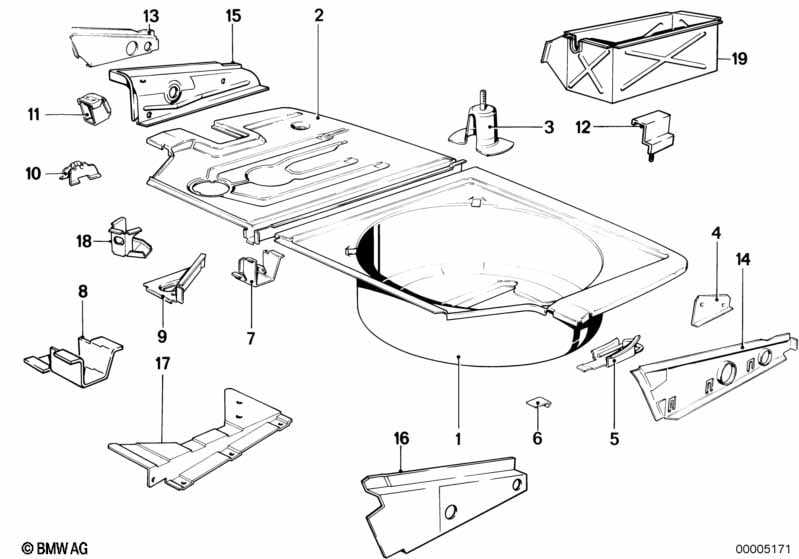

This Mounting parts for trunk floor panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor panel trunk lateral | BASIS | 1 | 41121932991 | $266.72 | ENDED | Shop at ECS Tuning | |||
| 02 | Floor panel trunk lateral | BASIS | 1 | 41121934418 | $155.12 | ENDED | Shop at ECS Tuning | |||
| 03 | Bracket for spare wheel | 1 | 41121909076 | $10.25 | ENDED | Shop at ECS Tuning | ||||
| 04 | Jack fixture | 1 | 41121826707 | $3.85 | Shop at ECS Tuning | |||||
| 05 | Towing suspension | 1 | 41121881766 | $31.21 | ENDED | Shop at ECS Tuning | ||||
| 06 | Support | 1 | 41121820263 | $11.51 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bracket fuel tank inner rear | 1 | 41121820964 | $12.28 | ENDED | Shop at ECS Tuning | ||||
| 09 | Sheet | 1 | 41121831993 | $5.69 | ENDED | Shop at ECS Tuning | ||||
| 10 | Bow | 1 | 18211246056 | $2.88 | Shop at ECS Tuning | |||||
| 11 | Bracket fuel tank front | 1 | 41121848271 | $13.28 | ENDED | Shop at ECS Tuning | ||||
| 12 | Jack fixture | 1 | 41121826706 | $6.38 | Shop at ECS Tuning | |||||
| 13 | Partition right | 1 | 41131848270 | $27.71 | Shop at ECS Tuning | |||||
| 14 | Partition left | 1 | 41131820497 | $23.40 | Shop at ECS Tuning | |||||
| 18 | Bracket fuel tank rear right | 1 | 41121935879 | $12.14 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 528e Mounting parts for trunk floor panel?
- This technical diagram illustrates the Mounting parts for trunk floor panel within the Bodywork group for the 5 Series E28 528e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Floor panel trunk lateral (Part #41121932991).
- Which models use the hardware listed in this Mounting parts for trunk floor panel?
- The hardware and components featured in the Mounting parts for trunk floor panel are specific to the 5 Series E28 528e produced during 1987. These technical specifications ensure that parts like the Floor panel trunk lateral (41121932991) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mounting parts for trunk floor panel assembly?
- Each item in the Mounting parts for trunk floor panel corresponds to the numbered list below the illustration. For the 5 Series E28 528e, you can identify the Floor panel trunk lateral by locating its position on the schematic, which then links to the official BMW part number 41121932991 for the Bodywork section.
