Floor panel trunk/wheel housing rear for BMW 3 Series E30 325ix (1990)

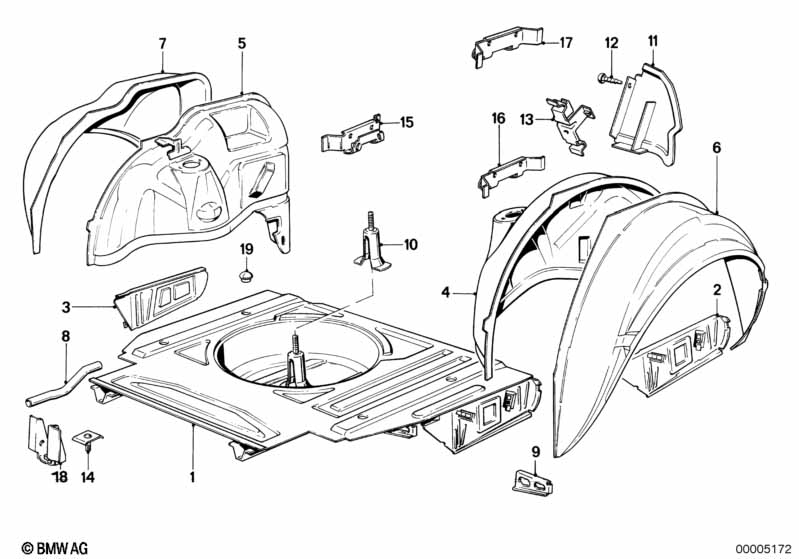

This Floor panel trunk/wheel housing rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk floor | BASIS | 1 | 09/1987 | 41111971145 | $488.83 | ENDED | Shop at ECS Tuning | ||
| 02 | Lateral trim panel left | 1 | 09/1987 | 41121972589 | $24.68 | ENDED | Shop at ECS Tuning | |||
| 03 | Lateral trim panel right | 1 | 09/1987 | 41121972588 | $34.75 | ENDED | Shop at ECS Tuning | |||
| 04 | Left rear inner wheelhouse | 1 | 09/1987 | 41111965239 | $267.00 | ENDED | Shop at ECS Tuning | |||
| 05 | Right rear inner wheelhouse | 1 | 41141939422 | $300.37 | ENDED | Shop at ECS Tuning | ||||
| 06 | Wheel arch outer rear left | 1 | 09/1987 | 41141972591 | $141.15 | ENDED | Shop at ECS Tuning | |||
| 07 | Wheel arch outer rear right | 1 | 09/1987 | 41141972592 | $141.15 | ENDED | Shop at ECS Tuning | |||
| 08 | Pipe | 1 | 41121916254 | $9.66 | ENDED | Shop at ECS Tuning | ||||
| 09 | Support | 1 | 41121911146 | ENDED | Shop at ECS Tuning | |||||
| 10 | Bracket for spare wheel | 1 | 41121909076 | $10.25 | ENDED | Shop at ECS Tuning | ||||
| 11 | Locking plug left | 1 | 51711916125 | $2.84 | Shop at ECS Tuning | |||||
| 11 | Locking plug right | 1 | 51711916126 | $2.84 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Bracket car jack hold-down | 1 | 41141911979 | $9.65 | ENDED | Shop at ECS Tuning | ||||
| 14 | Bracket fuel tank inner rear | 1 | 41121916702 | $2.83 | Shop at ECS Tuning | |||||
| 15 | Bracket exhaust, rear | 1 | 41121911152 | $7.83 | Shop at ECS Tuning | |||||
| 16 | Bracket exhaust, rear | 1 | 41121919948 | $8.00 | Shop at ECS Tuning | |||||
| 17 | Bracket exhaust, rear | 1 | 41111922407 | $12.02 | Shop at ECS Tuning | |||||
| 18 | Bracket fuel tank front | 1 | 41121922723 | $4.42 | Shop at ECS Tuning | |||||
| 19 | Blind plug | D=20MM | 6 | 51711801066 | $0.23 | Shop at ECS Tuning |
