Lateral trunk panels/inner for BMW 3 Series E30 318i (1989)

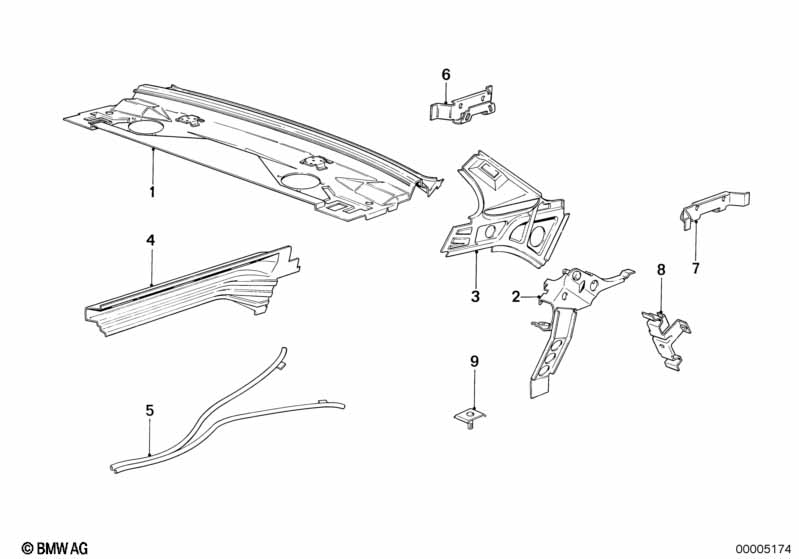

This Lateral trunk panels/inner technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hinge notch left | 1 | 41621911973 | $32.36 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinge notch right | 1 | 41621911974 | $17.80 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rear window frame right | 1 | 41321913786 | $86.77 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rear window frame left | 1 | 41321935461 | $98.49 | ENDED | Shop at ECS Tuning | ||||
| 04 | Waist rail trim strip, left rear | 1 | 41211913753 | $13.26 | ENDED | Shop at ECS Tuning | ||||
| 04 | Waist rail trim strip, right rear | 1 | 41211913754 | $13.26 | Shop at ECS Tuning | |||||
| 05 | Pipe | 1 | 41121916245 | $34.95 | ENDED | Shop at ECS Tuning | ||||
| 05 | Pipe | 1 | 41122902076 | Shop at ECS Tuning | ||||||
| 08 | Bracket car jack hold-down | 1 | 41141911979 | $9.65 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bracket fuel tank inner rear | 3 | 41121913008 | $2.54 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
