Floor parts rear exterior for BMW 5 Series E34 525td (1996)

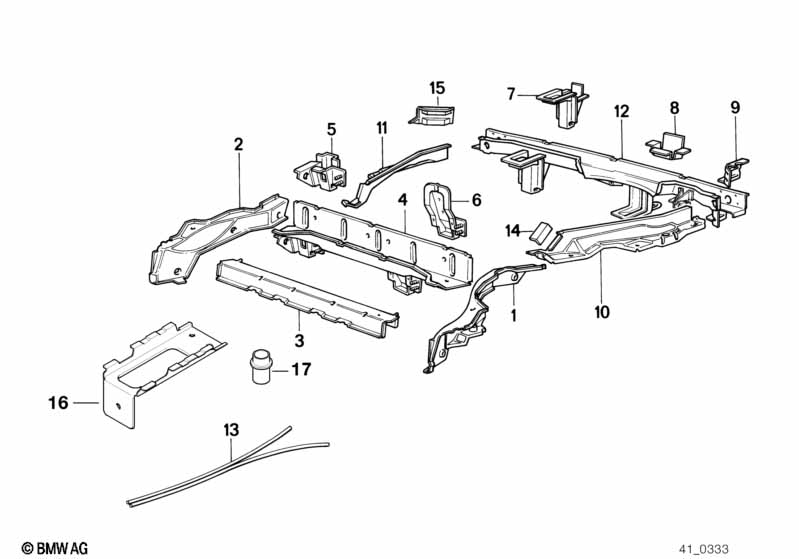

This Floor parts rear exterior technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear left side member | 1 | 41111948097 | $236.98 | Shop at ECS Tuning | |||||
| 02 | Right rear side member | 1 | 41111948098 | $236.98 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cross member floor panel front | 1 | 41008149219 | $137.27 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cross member rear axle carrier | 1 | 41111948093 | $310.22 | Shop at ECS Tuning | |||||
| 05 | Tension strap front right | 1 | 41111948102 | $18.17 | ENDED | Shop at ECS Tuning | ||||
| 06 | Tension strap front left | 1 | 41111948103 | $27.06 | ENDED | Shop at ECS Tuning | ||||
| 07 | Tension strap rear right | 1 | 41111948104 | $18.40 | ENDED | Shop at ECS Tuning | ||||
| 08 | Tension strap rear left | 1 | 41111948105 | $14.10 | Shop at ECS Tuning | |||||
| 09 | Reinforcement cross member | 1 | 41111938178 | ENDED | Shop at ECS Tuning | |||||
| 10 | Left side member | 1 | 41111969043 | $116.73 | Shop at ECS Tuning | |||||
| 11 | Right side member | 1 | 41111969044 | $116.73 | Shop at ECS Tuning | |||||
| 12 | Rear cross member | 1 | 41118111910 | $310.22 | Shop at ECS Tuning | |||||
| 13 | Pipe | L=1010MM | 1 | 41121958021 | $25.67 | ENDED | Shop at ECS Tuning | |||
| 14 | Support | 2 | 41111964629 | $13.06 | ENDED | Shop at ECS Tuning | ||||
| 15 | Reinforcement right | 1 | 41118105298 | $16.33 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
