Floor panel trunk/wheel housing rear for BMW 7 Series E32 730iL (1994)

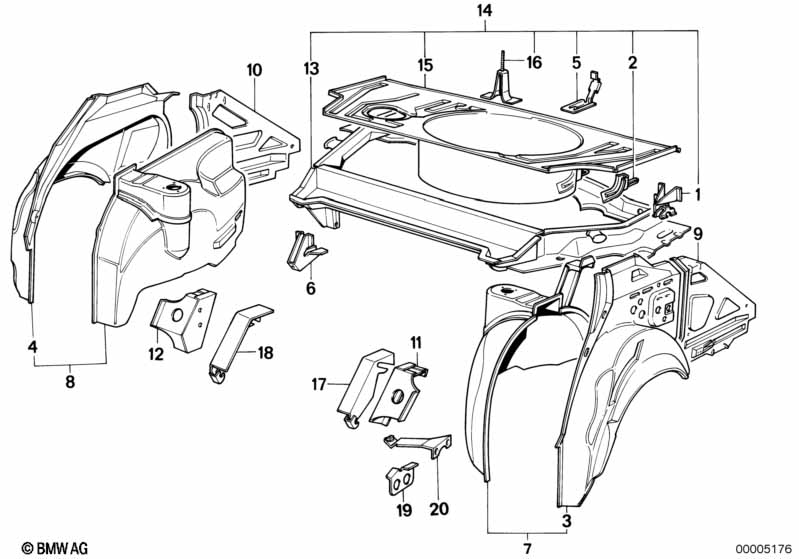

This Floor panel trunk/wheel housing rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket exhaust, rear | 1 | 41111948099 | $22.82 | Shop at ECS Tuning | |||||
| 02 | Towing hinge | 1 | 41111948100 | $24.94 | Shop at ECS Tuning | |||||
| 03 | Wheel arch outer rear left | 1 | 41141948109 | $170.62 | Shop at ECS Tuning | |||||
| 04 | Wheel arch outer rear right | 1 | 41141948110 | $170.62 | Shop at ECS Tuning | |||||
| 05 | Support left | 1 | 41121948115 | $4.68 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket fuel strainer | 1 | 41111948101 | $5.47 | Shop at ECS Tuning | |||||
| 07 | Rear left wheelhouse | BASIS | 1 | 41141948107 | $487.69 | ENDED | Shop at ECS Tuning | |||
| 08 | Rear right wheelhouse | BASIS | 1 | 41141948108 | $516.94 | Shop at ECS Tuning | ||||
| 09 | Support left | 1 | 41141948113 | $30.70 | Shop at ECS Tuning | |||||
| 10 | Support right | 1 | 41141948114 | $30.70 | Shop at ECS Tuning | |||||
| 11 | Bracket left | 1 | 41141948111 | $10.92 | ENDED | Shop at ECS Tuning | ||||
| 12 | Bracket right | 1 | 41141948112 | $12.16 | ENDED | Shop at ECS Tuning | ||||
| 13 | Support f trunk floor | 1 | 41111948092 | ENDED | Shop at ECS Tuning | |||||
| 14 | Trunk floor | BASIS | 1 | 41128111908 | $996.76 | Shop at ECS Tuning | ||||
| 15 | Trunk floor | BASIS | 1 | 41121948091 | $498.39 | Shop at ECS Tuning | ||||
| 16 | Bracket for spare wheel | 1 | 41121909076 | $10.25 | ENDED | Shop at ECS Tuning | ||||
| 17 | Hinge notch left | 1 | 41141908761 | $14.60 | ENDED | Shop at ECS Tuning | ||||
| 18 | Hinge notch right | 1 | 41141908762 | $22.60 | ENDED | Shop at ECS Tuning | ||||
| 19 | Bracket f.tubing pressure accumulator | 1 | 41121954681 | $5.47 | ENDED | Shop at ECS Tuning | ||||
| 20 | Bracket pressure accumulator left | 1 | 41121954679 | $4.68 | Shop at ECS Tuning | |||||
| 20 | Bracket pressure accumulator right | 1 | 41121954680 | $4.68 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
