Floor panel trunk/wheel housing rear for BMW 5 Series E34 530i (1990)

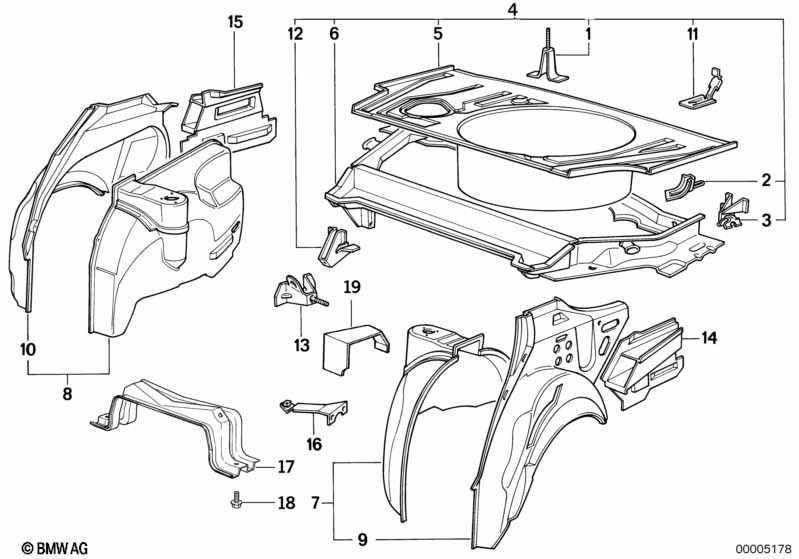

This Floor panel trunk/wheel housing rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket for spare wheel | 1 | 41121909076 | $10.25 | ENDED | Shop at ECS Tuning | ||||
| 02 | Towing hinge | 1 | 41111948100 | $24.94 | Shop at ECS Tuning | |||||
| 03 | Bracket exhaust, rear | 1 | 41111948099 | $22.82 | Shop at ECS Tuning | |||||
| 04 | Trunk floor | BASIS | 1 | 41128111908 | $996.76 | Shop at ECS Tuning | ||||
| 05 | Trunk floor | BASIS | 1 | 41121948091 | $498.39 | Shop at ECS Tuning | ||||
| 06 | Support f trunk floor | 1 | 41111948092 | ENDED | Shop at ECS Tuning | |||||
| 07 | Rear left wheelhouse | BASIS | 1 | 41141946377 | $452.68 | Shop at ECS Tuning | ||||
| 08 | Rear right wheelhouse | BASIS | 1 | 41141946378 | $452.68 | Shop at ECS Tuning | ||||
| 09 | Wheel arch outer rear left | 1 | 41141973893 | $170.62 | Shop at ECS Tuning | |||||
| 10 | Wheel arch outer rear right | 1 | 41141973894 | $170.62 | Shop at ECS Tuning | |||||
| 11 | Support left | 1 | 41121948115 | $4.68 | ENDED | Shop at ECS Tuning | ||||
| 12 | Bracket fuel strainer | 1 | 41111948101 | $5.47 | Shop at ECS Tuning | |||||
| 13 | Bracket car jack hold-down | 1 | 41141973699 | $12.50 | Shop at ECS Tuning | |||||
| 14 | Wheelhouse extension, left | 1 | 41148149213 | $25.46 | ENDED | Shop at ECS Tuning | ||||
| 15 | Wheelhouse extension, right | 1 | 41148149214 | $25.46 | ENDED | Shop at ECS Tuning | ||||
| 16 | Bracket pressure accumulator left | 1 | 41121954679 | $4.68 | Shop at ECS Tuning | |||||
| 16 | Bracket pressure accumulator right | 1 | 41121954680 | $4.68 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 530i Floor panel trunk/wheel housing rear?
- This technical diagram illustrates the Floor panel trunk/wheel housing rear within the Bodywork group for the 5 Series E34 530i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Bracket for spare wheel (Part #41121909076).
- Which models use the hardware listed in this Floor panel trunk/wheel housing rear?
- The hardware and components featured in the Floor panel trunk/wheel housing rear are specific to the 5 Series E34 530i produced during 1990. These technical specifications ensure that parts like the Bracket for spare wheel (41121909076) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Floor panel trunk/wheel housing rear assembly?
- Each item in the Floor panel trunk/wheel housing rear corresponds to the numbered list below the illustration. For the 5 Series E34 530i, you can identify the Bracket for spare wheel by locating its position on the schematic, which then links to the official BMW part number 41121909076 for the Bodywork section.
