Side panel/tail trim for BMW 6 Series E24 633CSi (1979)

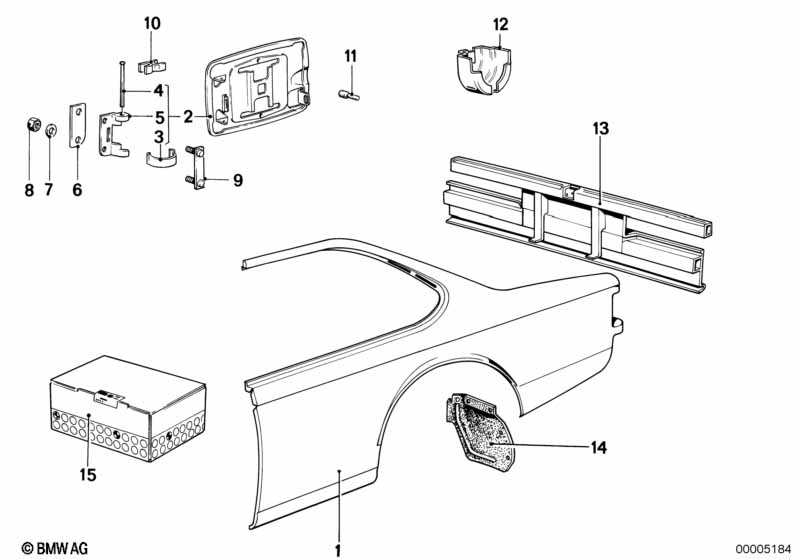

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear side panel | 1 | 09/1982 | 41351873057 | $912.74 | ENDED | Shop at ECS Tuning | |||
| 01 | Right rear side panel | 1 | 09/1982 | 41351873058 | $912.74 | ENDED | Shop at ECS Tuning | |||
| 02 | Fill-in flap | 1 | 51171864759 | $41.94 | Shop at ECS Tuning | |||||
| 03 | Spring | 1 | 51171969235 | $1.38 | Shop at ECS Tuning | |||||
| 04 | Pin | 1 | 51171829639 | $2.30 | Shop at ECS Tuning | |||||
| 05 | Hinge | 1 | 51171846701 | $11.15 | ENDED | Shop at ECS Tuning | ||||
| 06 | Spacer | 0,5MM | X | 51171852594 | $0.17 | ENDED | Shop at ECS Tuning | |||
| 06 | Spacer | 1,0MM | X | 51171852595 | $0.17 | Shop at ECS Tuning | ||||
| 07 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Lock plate | 1 | 51211832811 | $6.31 | Shop at ECS Tuning | |||||
| 10 | Stopper | 1 | 51171836476 | $0.18 | ENDED | Shop at ECS Tuning | ||||
| 11 | Stop buffer | 1 | 51171853772 | $1.52 | Shop at ECS Tuning | |||||
| 12 | Support filler cap | 1 | 51171923919 | $5.74 | Shop at ECS Tuning | |||||
| 13 | Tail panel | 1 | 06/1987 | 41341862456 | $563.61 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
