Partition trunk/wheel housing for BMW 3 Series E21 320i (1979)

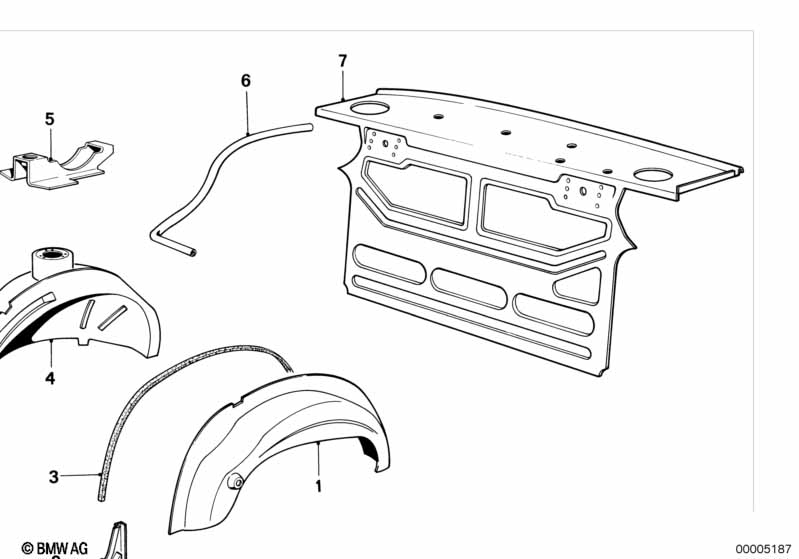

This Partition trunk/wheel housing technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel arch outer rear left | 1 | 41141846655 | $109.37 | ENDED | Shop at ECS Tuning | ||||
| 01 | Wheel arch outer rear right | 1 | 41141846656 | $109.37 | ENDED | Shop at ECS Tuning | ||||
| 02 | Corner plate wheel housing rear left | 1 | 41141846653 | $9.39 | ENDED | Shop at ECS Tuning | ||||
| 02 | Corner plate wheel housing rear right | 1 | 41141846654 | $9.39 | ENDED | Shop at ECS Tuning | ||||
| 03 | Filling rubber | 5000MM | 1 | 41359058743 | $42.15 | ENDED | Shop at ECS Tuning | |||
| 04 | Left rear inner wheelhouse | 1 | 07/1976 | 41141858141 | $353.11 | ENDED | Shop at ECS Tuning | |||
| 04 | Right rear inner wheelhouse | 1 | 07/1976 | 41141858142 | $353.11 | ENDED | Shop at ECS Tuning | |||
| 05 | Bracket for fuel filler tube | 1 | 41141846648 | $8.15 | Shop at ECS Tuning | |||||
| 06 | Protection tube | 1 | 41121856679 | $32.36 | ENDED | Shop at ECS Tuning | ||||
| 07 | Partition trunk | 1 | 41131846612 | $183.02 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
