Partition trunk/wheel housing for BMW 6 Series E24 635CSi (1989)

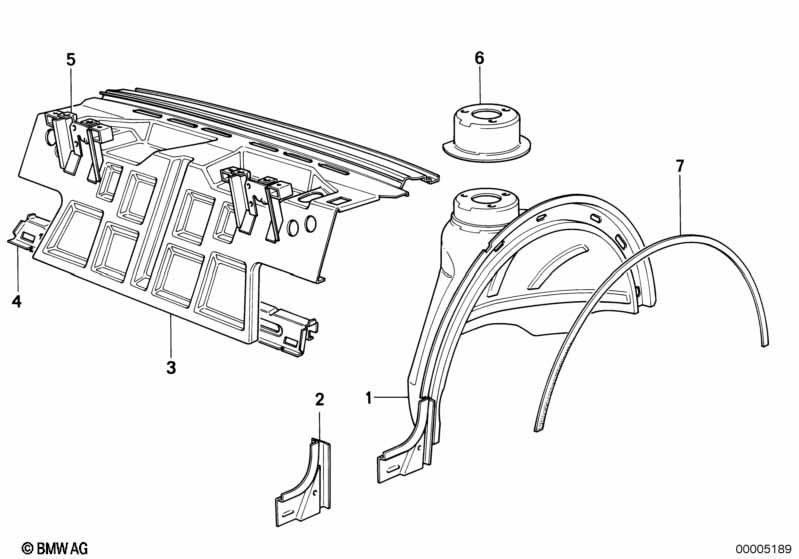

This Partition trunk/wheel housing technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear inner wheelhouse | 1 | 41141882593 | $208.21 | ENDED | Shop at ECS Tuning | ||||
| 01 | Right rear inner wheelhouse | 1 | 41141920806 | $391.10 | Shop at ECS Tuning | |||||
| 02 | Corner plate wheel housing rear left | 1 | 41141820495 | $22.79 | ENDED | Shop at ECS Tuning | ||||
| 02 | Corner plate wheel housing rear right | 1 | 41141820496 | $18.53 | Shop at ECS Tuning | |||||
| 03 | Partition trunk | 1 | 41131942030 | $786.78 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cross member | 1 | 41111820268 | $51.06 | ENDED | Shop at ECS Tuning | ||||
| 05 | Reinforcement | 2 | 41131839974 | ENDED | Shop at ECS Tuning | |||||
| 06 | Shock absorber mount rear left | 1 | 41141884027 | $9.96 | Shop at ECS Tuning | |||||
| 06 | Shock absorber mount rear right | 1 | 41141884028 | $9.96 | ENDED | Shop at ECS Tuning | ||||
| 07 | Filling rubber | 5000MM | X | 41359058743 | $42.15 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
