Floor panel trunk/wheel housing rear for BMW 7 Series E23 733i (1979)

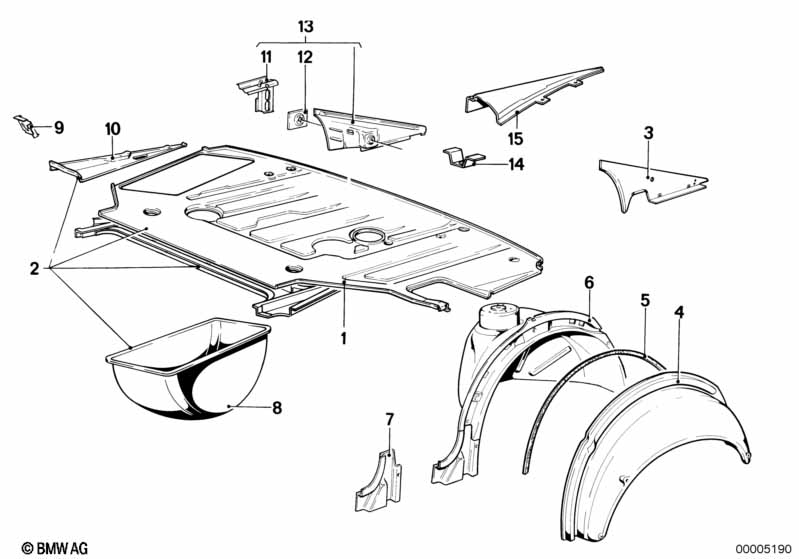

This Floor panel trunk/wheel housing rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk floor | 1 | 41121858080 | $382.79 | ENDED | Shop at ECS Tuning | ||||
| 02 | Trunk floor | BASIS | 1 | 41121883519 | $717.03 | ENDED | Shop at ECS Tuning | |||
| 03 | Partition trunk rear left | 1 | 41131858081 | $55.65 | ENDED | Shop at ECS Tuning | ||||
| 04 | Wheel arch outer rear left | 1 | 41141858293 | $148.44 | Shop at ECS Tuning | |||||
| 04 | Wheel arch outer rear right | 1 | 41141858294 | $148.44 | Shop at ECS Tuning | |||||
| 05 | Filling rubber | 5000MM | 1 | 41359058743 | $42.15 | ENDED | Shop at ECS Tuning | |||
| 06 | Left rear inner wheelhouse | 1 | 41141902219 | $344.84 | ENDED | Shop at ECS Tuning | ||||
| 06 | Right rear inner wheelhouse | 1 | 41141902220 | $344.84 | ENDED | Shop at ECS Tuning | ||||
| 07 | Corner plate wheel housing rear left | 1 | 41141910693 | $20.87 | ENDED | Shop at ECS Tuning | ||||
| 07 | Corner plate wheel housing rear right | 1 | 41141910694 | $20.87 | ENDED | Shop at ECS Tuning | ||||
| 08 | Spare wheel tray | 1 | 41121858082 | $79.24 | ENDED | Shop at ECS Tuning | ||||
| 09 | Jack-positioner | 1 | 41131860347 | $4.46 | ENDED | Shop at ECS Tuning | ||||
| 10 | Floor panel trunk lateral | 1 | 41121858089 | $19.53 | Shop at ECS Tuning | |||||
| 11 | Bracket car jack hold-down | 1 | 41131860349 | $15.85 | ENDED | Shop at ECS Tuning | ||||
| 12 | Bracket for spare wheel | 1 | 41131860279 | $5.58 | ENDED | Shop at ECS Tuning | ||||
| 13 | Partition trunk rear right | 1 | 41131860460 | $66.40 | ENDED | Shop at ECS Tuning | ||||
| 14 | Holder, heat protection sheet | 7 | 41111816760 | $12.95 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
