Rear wheel arch for BMW 5 Series E12 525 (1981)

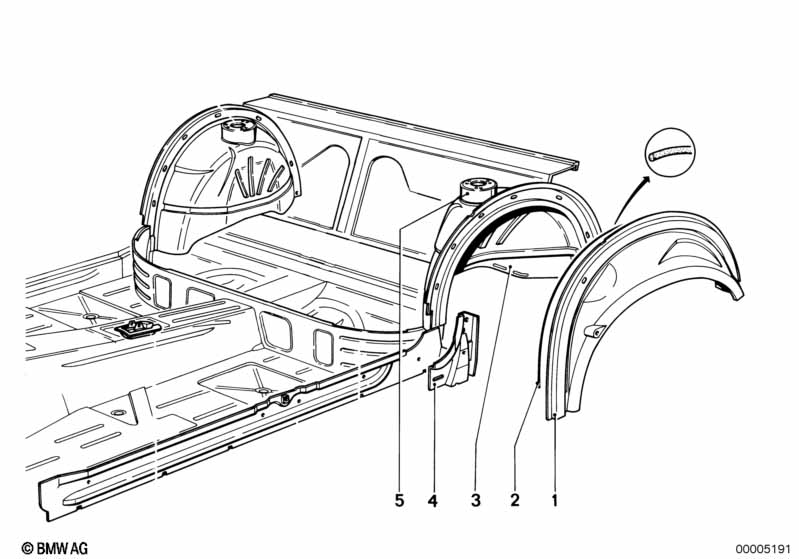

This Rear wheel arch technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel arch outer rear left | 1 | 41141816315 | $150.29 | ENDED | Shop at ECS Tuning | ||||
| 01 | Wheel arch outer rear right | 1 | 41141816316 | $183.11 | ENDED | Shop at ECS Tuning | ||||
| 02 | Filling rubber | 5000MM | 1 | 41359058743 | $42.15 | ENDED | Shop at ECS Tuning | |||
| 03 | Left rear inner wheelhouse | 1 | 08/1976 | 41141900757 | $386.14 | ENDED | Shop at ECS Tuning | |||
| 03 | Right rear inner wheelhouse | 1 | 08/1976 | 41141900758 | $386.14 | Shop at ECS Tuning | ||||
| 04 | Corner plate wheel housing rear left | 1 | 41141820495 | $22.79 | ENDED | Shop at ECS Tuning | ||||
| 04 | Corner plate wheel housing rear right | 1 | 41141820496 | $18.53 | Shop at ECS Tuning | |||||
| 05 | Shock absorber mount rear left | 1 | 08/1976 | 41141884027 | $9.96 | Shop at ECS Tuning | ||||
| 05 | Shock absorber mount rear right | 1 | 08/1976 | 41141884028 | $9.96 | ENDED | Shop at ECS Tuning |
