Side panel/tail trim for BMW 3 Series E30 325i (1990)

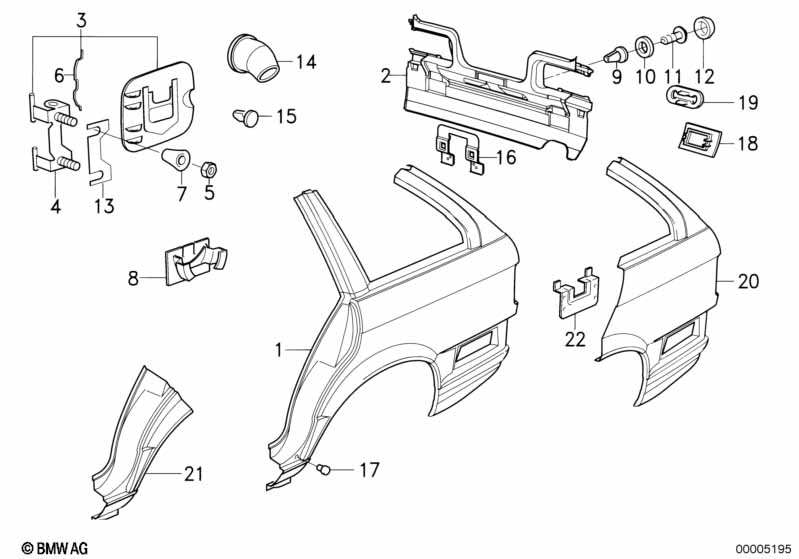

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear side panel | 1 | 41351947433 | ENDED | Shop at ECS Tuning | |||||
| 01 | Right rear side panel | 1 | 41351947434 | ENDED | Shop at ECS Tuning | |||||
| 02 | Tail trim | 1 | 41341961512 | ENDED | Shop at ECS Tuning | |||||
| 03 | Fill-in flap | 1 | 51171906579 | $36.74 | Shop at ECS Tuning | |||||
| 04 | Hinge | 1 | 51171888370 | $9.38 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Spring | 1 | 51171888374 | $0.38 | Shop at ECS Tuning | |||||
| 07 | Spacer sleeve | 1 | 51171888394 | $1.82 | Shop at ECS Tuning | |||||
| 08 | Support filler cap | 1 | 51171923919 | $5.74 | Shop at ECS Tuning | |||||
| 09 | Plug-in nut | 2 | 51181852299 | $0.23 | Shop at ECS Tuning | |||||
| 10 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 11 | Fillister head self-tapping screw | ST4,8X16MM | 2 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 12 | Covering cap | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 12 | Covering cap | SCHWARZ | 2 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 12 | Covering cap | DUNKELBLAU | 2 | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Spacer | 0,5MM | X | 51171906869 | $0.32 | Shop at ECS Tuning | ||||
| 13 | Spacer | 1,0MM | X | 51171906877 | $0.18 | Shop at ECS Tuning | ||||
| 14 | Rubber cover | 1 | 51711884358 | $21.88 | Shop at ECS Tuning | |||||
| 15 | Stop buffer | 1,5 MM | 2 | 51171911306 | $0.32 | Shop at ECS Tuning | ||||
| 15 | Stop buffer | 2MM | 1 | 51171960728 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 16 | Support | 1 | 41341947437 | Shop at ECS Tuning | ||||||
| 17 | Blind plug | D=12MM | 2 | 51719057117 | $0.22 | Shop at ECS Tuning | ||||
| 18 | Cover | 2 | 51711917437 | ENDED | Shop at ECS Tuning | |||||
| 19 | Cover | 1 | 51711920010 | $14.92 | Shop at ECS Tuning | |||||
| 20 | Left rear side panel | 1 | 41351947339 | Shop at ECS Tuning | ||||||
| 20 | Right rear side panel | 1 | 41351947340 | Shop at ECS Tuning | ||||||
| 21 | Section of rear left fender | 1 | 41351961527 | $188.28 | Shop at ECS Tuning | |||||
| 21 | Section of rear right fender | 1 | 41351961528 | $188.28 | Shop at ECS Tuning | |||||
| 22 | Bracket for AEGS control module | 1 | 41351937998 | $3.93 | Shop at ECS Tuning |
