Roof for BMW 3 Series E21 320i (1982)

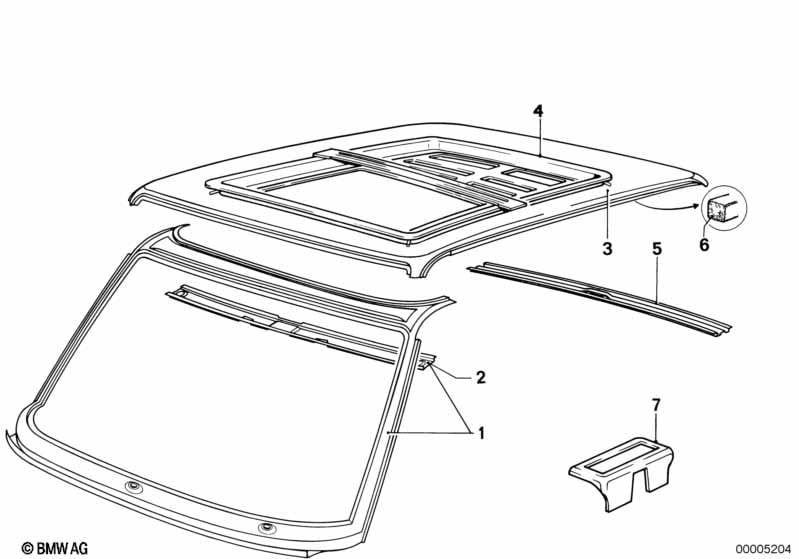

This Roof technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Apron | 1 | 41321846693 | $311.36 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering plate | 1 | 41321846705 | $49.94 | ENDED | Shop at ECS Tuning | ||||
| 03 | Roof covering lifting-sliding roof | 1 | 41311828940 | $831.42 | ENDED | Shop at ECS Tuning | ||||
| 03 | Roof cover | 1 | 41311840176 | $476.53 | ENDED | Shop at ECS Tuning | ||||
| 04 | Frame sliding-lifting roof | 1 | 54121934969 | $171.79 | ENDED | Shop at ECS Tuning | ||||
| 05 | Roof bow | 1 | 41231840376 | $29.85 | Shop at ECS Tuning | |||||
| 06 | Filling rubber | 5000MM | X | 41359058743 | $42.15 | ENDED | Shop at ECS Tuning | |||
| 07 | Bracket interior light | 2 | 41231868607 | $4.65 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
