Roof for BMW 5 Series E12 525 (1981)

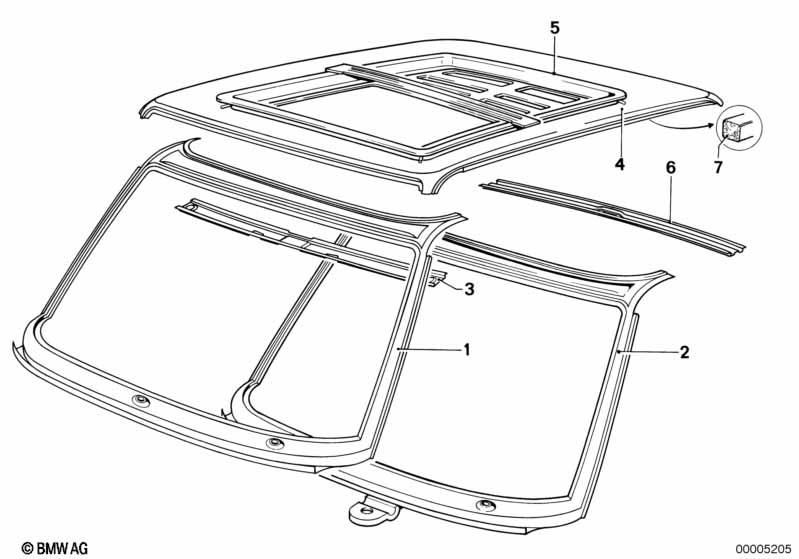

This Roof technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Apron | 1 | 08/1976 | 41321848262 | $324.76 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering plate | 1 | 41321820469 | ENDED | Shop at ECS Tuning | |||||
| 04 | Roof cover | 1 | 41311820494 | $516.71 | ENDED | Shop at ECS Tuning | ||||
| 04 | Roof covering lifting-sliding roof | 1 | 08/1976 | 41311849497 | $1032.30 | ENDED | Shop at ECS Tuning | |||
| 05 | Frame | 1 | 08/1976 | 54121927059 | $197.53 | ENDED | Shop at ECS Tuning | |||
| 06 | Roof bow | 1 | 41231820267 | $53.01 | ENDED | Shop at ECS Tuning | ||||
| 07 | Filling rubber | 5000MM | 1 | 41359058743 | $42.15 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 525 Roof?
- This technical diagram illustrates the Roof within the Bodywork group for the 5 Series E12 525 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Apron (Part #41321848262).
- Which models use the hardware listed in this Roof?
- The hardware and components featured in the Roof are specific to the 5 Series E12 525 produced during 1981. These technical specifications ensure that parts like the Apron (41321848262) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof assembly?
- Each item in the Roof corresponds to the numbered list below the illustration. For the 5 Series E12 525, you can identify the Apron by locating its position on the schematic, which then links to the official BMW part number 41321848262 for the Bodywork section.
