Rear window frame for BMW 7 Series E23 733i (1987)

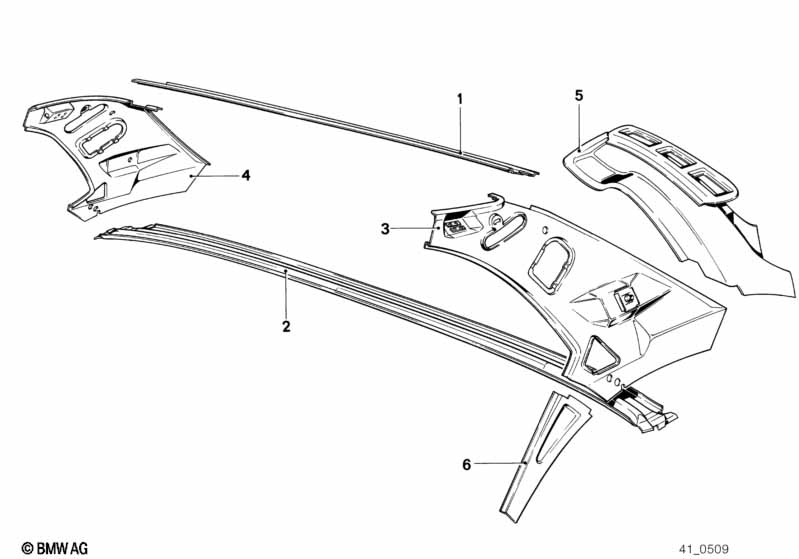

This Rear window frame technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear window frame upper part | 1 | 41323905075 | Shop at ECS Tuning | ||||||
| 02 | Rear window frame bottom part | 1 | 41323905089 | Shop at ECS Tuning | ||||||
| 03 | Rear window frame left | 1 | 41322908471 | Shop at ECS Tuning | ||||||
| 04 | Rear window frame right | 1 | 41322908472 | Shop at ECS Tuning | ||||||
| 05 | Air guiede left | 1 | 41323907785 | Shop at ECS Tuning | ||||||
| 05 | Air guiede right | 1 | 41323907786 | Shop at ECS Tuning | ||||||
| 06 | Corner plate wheel housing rear left | 1 | 41322908465 | Shop at ECS Tuning | ||||||
| 06 | Corner plate wheel housing rear right | 1 | 41322908466 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Rear window frame?
- This technical diagram illustrates the Rear window frame within the Bodywork group for the 7 Series E23 733i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Rear window frame upper part (Part #41323905075).
- Which models use the hardware listed in this Rear window frame?
- The hardware and components featured in the Rear window frame are specific to the 7 Series E23 733i produced during 1987. These technical specifications ensure that parts like the Rear window frame upper part (41323905075) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear window frame assembly?
- Each item in the Rear window frame corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Rear window frame upper part by locating its position on the schematic, which then links to the official BMW part number 41323905075 for the Bodywork section.
