Roof for BMW 5 Series E28 535i (1987)

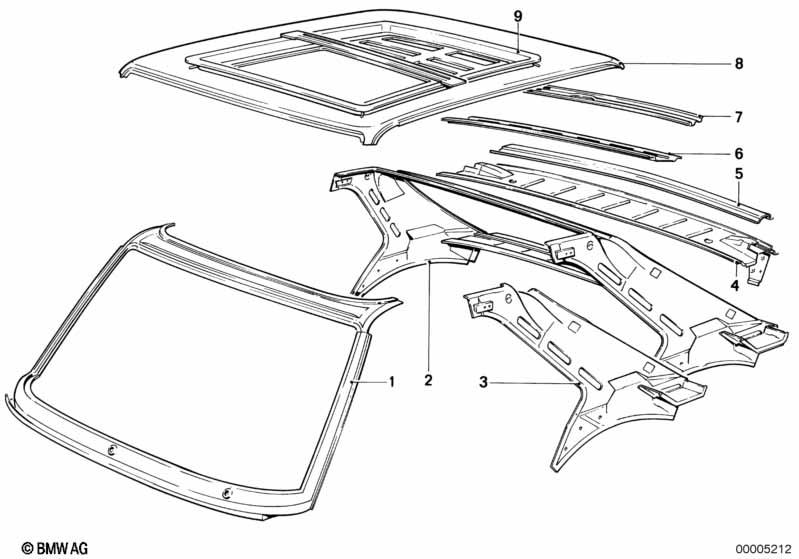

This Roof technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Apron | 1 | 41321868611 | $35.75 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rear window frame | 1 | 41321872846 | $489.92 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rear window frame left | 1 | 41321881157 | $128.34 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rear window frame right | 1 | 41321881158 | $128.34 | ENDED | Shop at ECS Tuning | ||||
| 04 | Covering plate | 1 | 41321823087 | $76.23 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rear window frame bottom part | 1 | 41321881522 | $47.00 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rear window frame upper part | 1 | 41321901583 | $53.85 | ENDED | Shop at ECS Tuning | ||||
| 07 | Roof bow | 1 | 41231900670 | $58.87 | Shop at ECS Tuning | |||||
| 08 | Roof cover | 1 | 41311820494 | $516.71 | ENDED | Shop at ECS Tuning | ||||
| 08 | Roof covering lifting-sliding roof | 1 | 41311849497 | $1032.30 | ENDED | Shop at ECS Tuning | ||||
| 09 | Frame | 1 | 54121927059 | $197.53 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
