Roof for BMW 3 Series E30 M3 (1990)

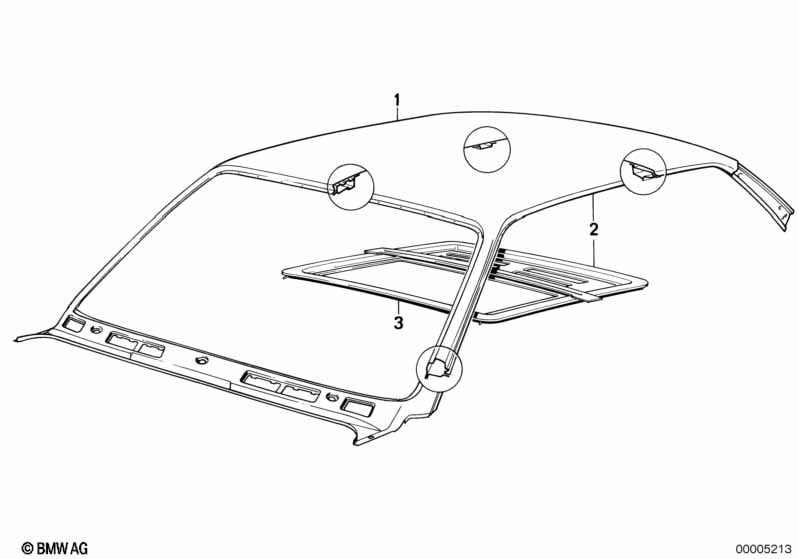

This Roof technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roof cover | 1 | 41311945816 | $845.37 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 02 | Roof covering lifting-sliding roof | 1 | 41311943998 | $1107.63 | ENDED | Shop at ECS Tuning | ||||
| 03 | Frame sliding-lifting roof | 1 | 54121934969 | $171.79 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 M3 Roof?
- This technical diagram illustrates the Roof within the Bodywork group for the 3 Series E30 M3 produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Roof cover (Part #41311945816).
- Which models use the hardware listed in this Roof?
- The hardware and components featured in the Roof are specific to the 3 Series E30 M3 produced during 1990. These technical specifications ensure that parts like the Roof cover (41311945816) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof assembly?
- Each item in the Roof corresponds to the numbered list below the illustration. For the 3 Series E30 M3, you can identify the Roof cover by locating its position on the schematic, which then links to the official BMW part number 41311945816 for the Bodywork section.
