Hood for BMW 3 Series E21 320i (1979)

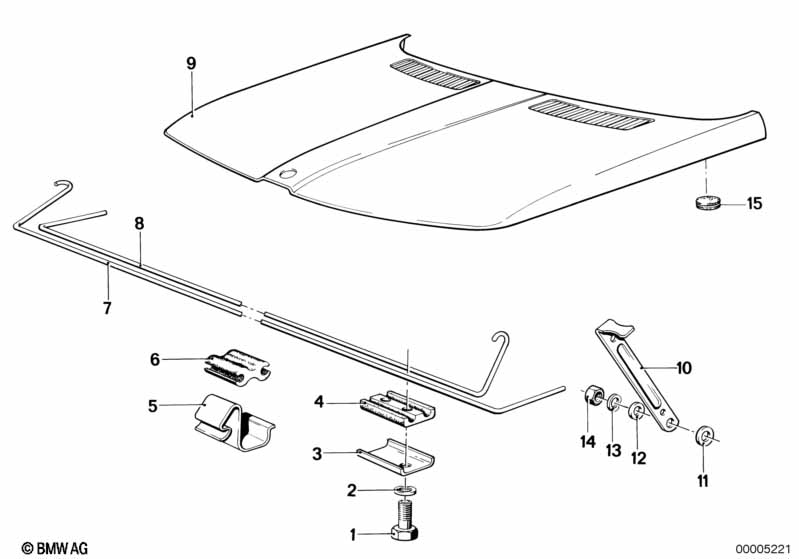

This Hood technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M6X20-8.8-ZNS | 2 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 01 | Hex bolt with washer | M6X20-Z3 | 2 | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 02 | Spring washer | B6 | 2 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Holder | 2 | 41611832854 | $0.90 | ENDED | Shop at ECS Tuning | ||||
| 04 | Guide | 2 | 41611832853 | $1.23 | Shop at ECS Tuning | |||||
| 05 | Clamp | 2 | 51231833008 | $0.73 | ENDED | Shop at ECS Tuning | ||||
| 06 | Suspension | 3 | 51241804080 | $1.92 | Shop at ECS Tuning | |||||
| 07 | Torsion spring left | 1 | 41611826137 | $7.46 | ENDED | Shop at ECS Tuning | ||||
| 08 | Torsion spring right | 1 | 41611826138 | $7.46 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hood | 1 | 41611864229 | $783.07 | ENDED | Shop at ECS Tuning | ||||
| 10 | Supporting arm | 2 | 41611846704 | $6.07 | ENDED | Shop at ECS Tuning | ||||
| 11 | Washer | 2 | 41611833135 | $0.20 | ENDED | Shop at ECS Tuning | ||||
| 12 | Washer | D=8,4 | 2 | 41611833134 | $0.17 | ENDED | Shop at ECS Tuning | |||
| 13 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Hex nut | M8-8-ZNS3 | 2 | 12/1982 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 14 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Pushrod seal | D=8MM | 2 | 41125503104 | $0.45 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Hood?
- This technical diagram illustrates the Hood within the Bodywork group for the 3 Series E21 320i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119913016).
- Which models use the hardware listed in this Hood?
- The hardware and components featured in the Hood are specific to the 3 Series E21 320i produced during 1979. These technical specifications ensure that parts like the Hex bolt (07119913016) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hood assembly?
- Each item in the Hood corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119913016 for the Bodywork section.
