Engine hood/mounting parts for BMW 5 Series E12 528 (1976)

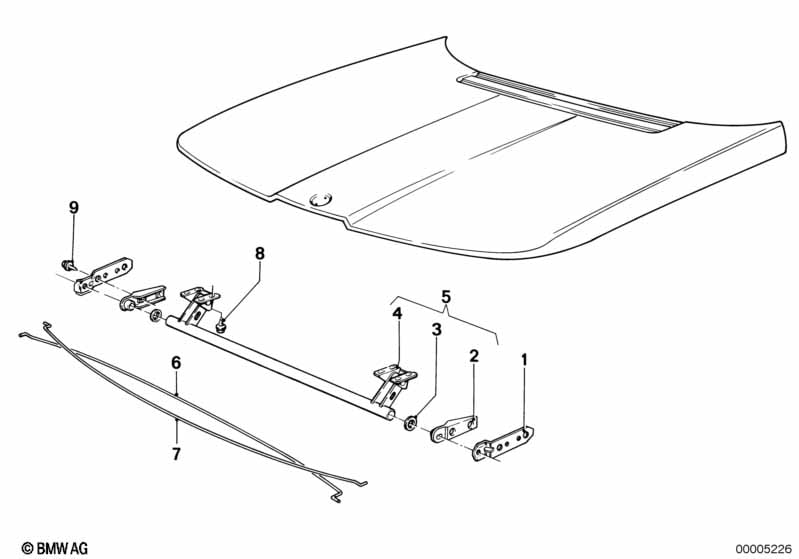

This Engine hood/mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Holder | 2 | 41611823020 | $1.41 | Shop at ECS Tuning | |||||
| 02 | Joint link | 2 | 41611820963 | $9.82 | ENDED | Shop at ECS Tuning | ||||
| 03 | Washer | 2 | 41611822915 | $1.23 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hinge | 2 | 41611820470 | $13.95 | ENDED | Shop at ECS Tuning | ||||
| 05 | Joint link | 1 | 41611820579 | $47.84 | Shop at ECS Tuning | |||||
| 06 | Torsion spring left | 1 | 41611815515 | $9.95 | Shop at ECS Tuning | |||||
| 07 | Torsion spring right | 1 | 41611815516 | $9.95 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X16-Z3-2 | 8 | 07119915071 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X12-Z4-2 | 4 | 07119915015 | $0.47 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
