Engine hood mechanism for BMW 3 Series E21 320i (1977)

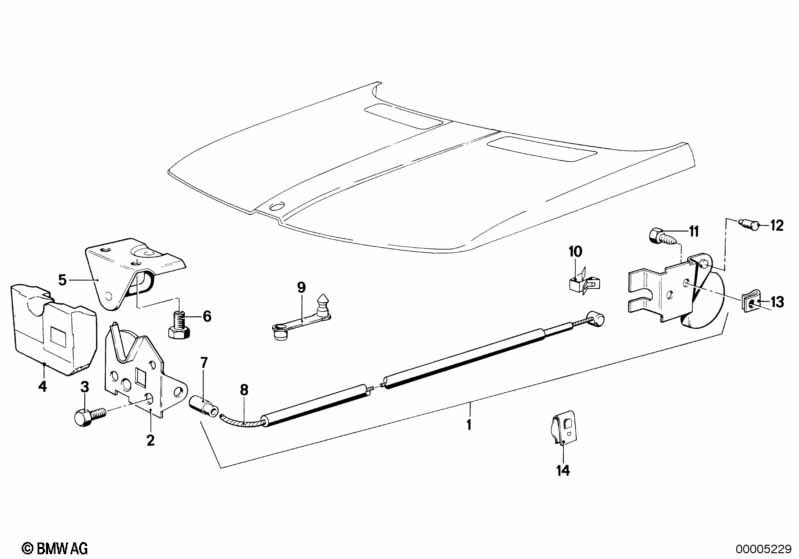

This Engine hood mechanism technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine hood mechanism | 1 | 51231827317 | Shop at ECS Tuning | ||||||
| 02 | Hood lock | 1 | 51231819018 | $6.68 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X10 | 2 | 07119900054 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Cover | 1 | 51231904742 | $0.52 | Shop at ECS Tuning | |||||
| 05 | Catch bracket | 1 | 41611826950 | $14.14 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M6X12-Z4-2 | 2 | 07119915015 | $0.47 | Shop at ECS Tuning | ||||
| 07 | NIpple | 1 | 51231872968 | $0.28 | Shop at ECS Tuning | |||||
| 08 | Bowden cable | 1 | 51231827319 | ENDED | Shop at ECS Tuning | |||||
| 09 | Cable tie | 1 | 51231832309 | $0.65 | ENDED | Shop at ECS Tuning | ||||
| 10 | Clamp | 1 | 51231819376 | $0.82 | Shop at ECS Tuning | |||||
| 11 | Hex head screw | ST6,3X19-C-Z1 | 2 | 07119916970 | $0.30 | Shop at ECS Tuning | ||||
| 12 | Rivet | 1 | 51231817623 | $0.58 | Shop at ECS Tuning | |||||
| 13 | Body nut | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 14 | Clamp | 1 | 51231819012 | $0.19 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Engine hood mechanism?
- This technical diagram illustrates the Engine hood mechanism within the Bodywork group for the 3 Series E21 320i produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Engine hood mechanism (Part #51231827317).
- Which models use the hardware listed in this Engine hood mechanism?
- The hardware and components featured in the Engine hood mechanism are specific to the 3 Series E21 320i produced during 1977. These technical specifications ensure that parts like the Engine hood mechanism (51231827317) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine hood mechanism assembly?
- Each item in the Engine hood mechanism corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Engine hood mechanism by locating its position on the schematic, which then links to the official BMW part number 51231827317 for the Bodywork section.
