Engine hood/mounting parts for BMW 3 Series E21 320 (1977)

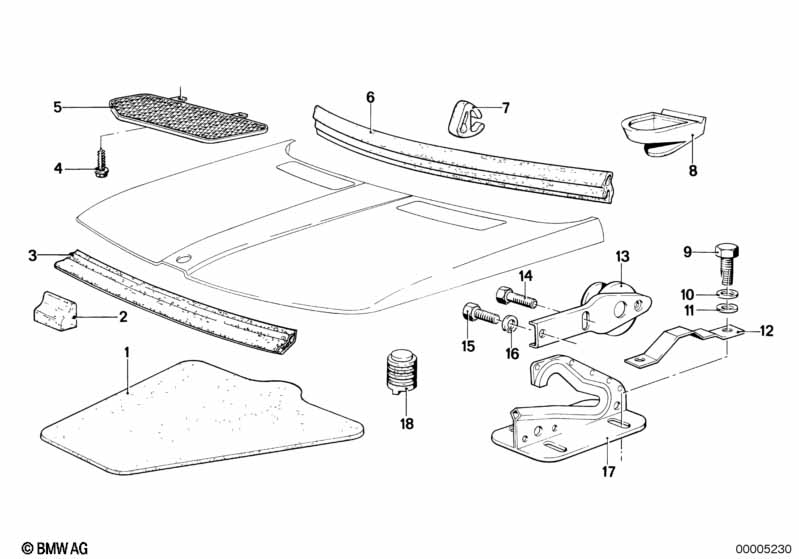

This Engine hood/mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound absorber | 1 | 51481832785 | $74.31 | Shop at ECS Tuning | |||||
| 02 | End piece sealing | 2 | 51231841233 | $2.12 | Shop at ECS Tuning | |||||
| 03 | sealing | 1 | 51231902908 | $37.89 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex head screw | ST4,8X16-C-Z1 | 4 | 07119916945 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Hex head screw | ST4,8X16-C-Z1 | 4 | 07119906265 | ENDED | Shop at ECS Tuning | ||||
| 05 | Grating left | 1 | 51231840421 | $17.33 | Shop at ECS Tuning | |||||
| 05 | Grating right | 1 | 51231840422 | $17.33 | Shop at ECS Tuning | |||||
| 06 | sealing | 1360MM | 1 | 51231900492 | $28.21 | Shop at ECS Tuning | ||||
| 07 | Stopper | 1 | 51231819847 | $1.47 | ENDED | Shop at ECS Tuning | ||||
| 08 | sealing | 1 | 51231836049 | $11.02 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X16-SB-Z3-2 | 8 | 07119915022 | $0.30 | Shop at ECS Tuning | ||||
| 12 | Stopper | 2 | 51231831316 | $1.05 | Shop at ECS Tuning | |||||
| 13 | Roller guide | 2 | 51231833187 | $20.38 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M8X20-Z3 | 2 | 07119913958 | $0.43 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M8X20-Z3-2 | 2 | 07119915078 | $0.54 | Shop at ECS Tuning | ||||
| 15 | Hex bolt with washer | M8X16-Z3 | 2 | 07119915066 | $0.62 | Shop at ECS Tuning | ||||
| 17 | Notch | 2 | 51231833191 | $104.63 | Shop at ECS Tuning | |||||
| 18 | Stop buffer | 2 | 51231852347 | $2.79 | Shop at ECS Tuning |
