Engine hood mechanism for BMW 6 Series E24 628CSi (1982)

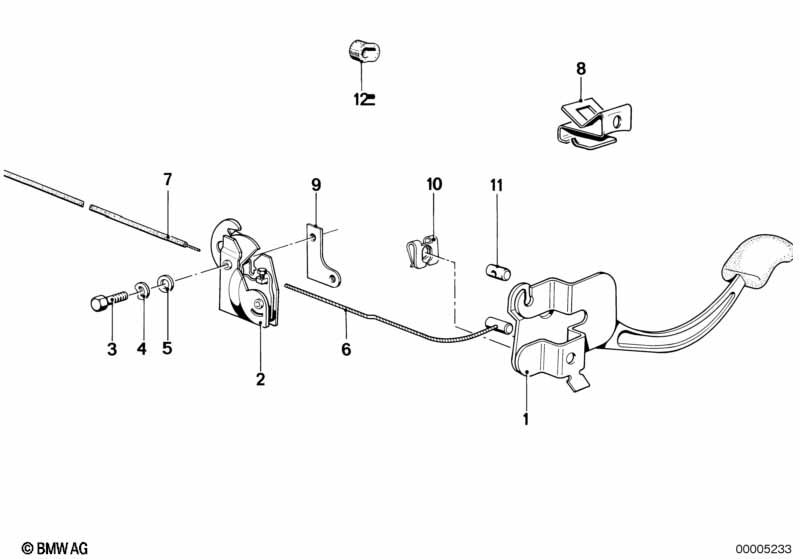

This Engine hood mechanism technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine hood mechanism | 1 | 51231920731 | $16.37 | Shop at ECS Tuning | |||||
| For vehicles with Airbag |
=Yes |
|||||||||
| 01 | Engine hood mechanism | 1 | 51231920735 | $5.80 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lock | 2 | 51231859731 | $111.74 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X35-8.8-ZNS3 | 4 | 07119902998 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X25 | 4 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Spring washer | B6 | 4 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 06 | Bowden cable | 1 | 51231839767 | $23.14 | ENDED | Shop at ECS Tuning | ||||
| 07 | Case | B2,5 | 1 | 07119988270 | ENDED | Shop at ECS Tuning | ||||
| 08 | Clamp | 2 | 51231819376 | $0.82 | Shop at ECS Tuning | |||||
| 09 | Reinforcement | 2 | 51231859711 | $3.52 | ENDED | Shop at ECS Tuning | ||||
| 10 | Circlip | 1 | 03/1979 | 41621883598 | $0.77 | ENDED | Shop at ECS Tuning | |||
| 11 | NIpple | 1 | 07119988505 | $1.73 | Shop at ECS Tuning | |||||
| 11 | Nipple holder | 1 | 51231856478 | $0.58 | Shop at ECS Tuning | |||||
| 12 | Spacer bush | 2 | 51231861720 | $8.31 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
