Engine hood/mounting parts for BMW 7 Series E23 728i (1982)

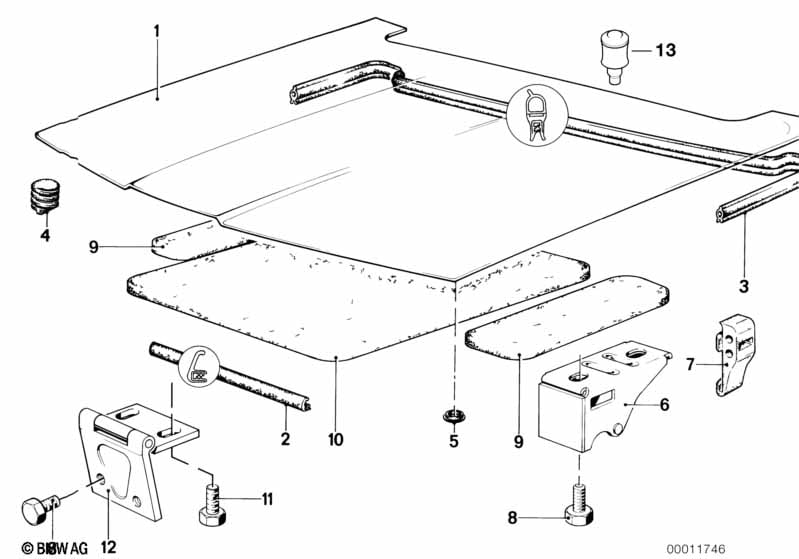

This Engine hood/mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hood | 1 | 41611955983 | $640.88 | ENDED | Shop at ECS Tuning | ||||
| 02 | sealing | L=1000 | 1 | 51711847061 | $12.32 | ENDED | Shop at ECS Tuning | |||
| 02 | sealing | 1 | 51711902903 | ENDED | Shop at ECS Tuning | |||||
| 03 | sealing | 1 | 51711902848 | $38.02 | ENDED | Shop at ECS Tuning | ||||
| 04 | Stop buffer | 2 | 51231852347 | $2.79 | Shop at ECS Tuning | |||||
| 05 | Pushrod seal | D=8MM | 2 | 41125503104 | $0.45 | ENDED | Shop at ECS Tuning | |||
| 06 | Catch bracket | 2 | 41611843414 | $44.57 | Shop at ECS Tuning | |||||
| 07 | Clamping | 2 | 51231857992 | $1.68 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X16U2-8.8ZNS3 | 8 | 07119904279 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M8X16-Z3-2 | 8 | 07119915071 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Sound absorber left | 1 | 51481852353 | $16.85 | Shop at ECS Tuning | |||||
| 09 | Sound absorber right | 1 | 51481852354 | $16.85 | Shop at ECS Tuning | |||||
| 10 | Sound absorber center | 1 | 51481852355 | $62.42 | Shop at ECS Tuning | |||||
| 11 | Hex bolt with washer | M8X20-Z3 | 4 | 07119913958 | $0.43 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M8X16-Z4-1 | 4 | 07119915068 | $0.98 | Shop at ECS Tuning | ||||
| 12 | Hinge | 2 | 41611870532 | $35.09 | Shop at ECS Tuning | |||||
| 13 | Bump stop | 2 | 13711263819 | $2.08 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
