Front door-hinge/door brake for BMW 3 Series E21 315 (1982)

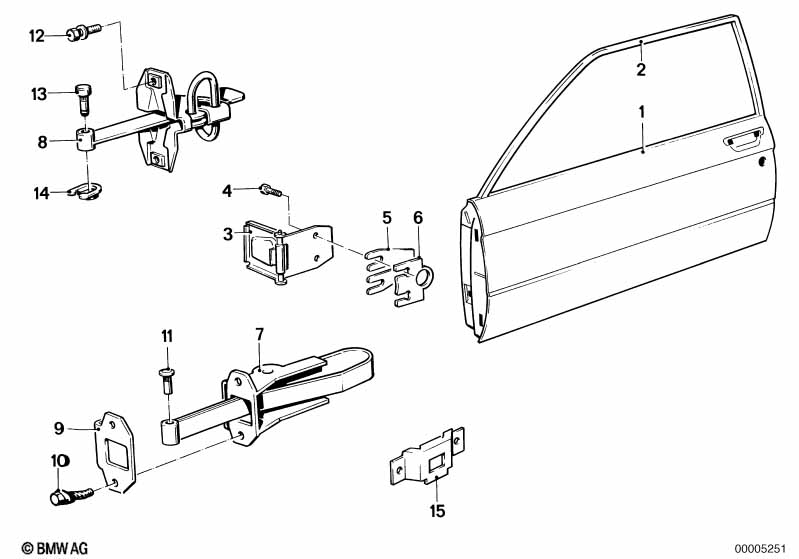

This Front door-hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 315. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door left | 1 | 41511875661 | $549.08 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door right | 1 | 41511875662 | $549.08 | ENDED | Shop at ECS Tuning | ||||
| 02 | Window frame, front left | 1 | 41511838057 | ENDED | Shop at ECS Tuning | |||||
| 02 | Window frame front right | 1 | 41511838058 | $76.17 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hinge left | 2 | 41511875653 | $32.58 | Shop at ECS Tuning | |||||
| 03 | Hinge right | 2 | 41511875654 | $32.58 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X25-Z4 | X | 07119915083 | $3.15 | Shop at ECS Tuning | ||||
| 05 | Hinge spacer | 1,00MM | X | 41511801253 | $10.32 | Shop at ECS Tuning | ||||
| 05 | Hinge spacer | 0,75MM | X | 41511801254 | $7.49 | ENDED | Shop at ECS Tuning | |||
| 06 | Hinge spacer | 1,00MM | X | 41511873064 | $2.52 | Shop at ECS Tuning | ||||
| 08 | Door brake | 2 | 41511881589 | $86.64 | ENDED | Shop at ECS Tuning | ||||
| 09 | Stopper | 2 | 41511800150 | $3.87 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X18-Z3-2 | 4 | 07119915027 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Pin | 2 | 51211875008 | $1.05 | Shop at ECS Tuning | |||||
| 12 | Hex bolt with washer | M6X12-U2-8.8 | 4 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 13 | Pin | 2 | 51211875008 | $1.05 | Shop at ECS Tuning | |||||
| 14 | Lock Ring | 2 | 51211854873 | $0.81 | Shop at ECS Tuning | |||||
| 15 | Holder | 2 | 41511870878 | $1.65 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 315 Front door-hinge/door brake?
- This technical diagram illustrates the Front door-hinge/door brake within the Bodywork group for the 3 Series E21 315 produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Door left (Part #41511875661).
- Which models use the hardware listed in this Front door-hinge/door brake?
- The hardware and components featured in the Front door-hinge/door brake are specific to the 3 Series E21 315 produced during 1982. These technical specifications ensure that parts like the Door left (41511875661) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front door-hinge/door brake assembly?
- Each item in the Front door-hinge/door brake corresponds to the numbered list below the illustration. For the 3 Series E21 315, you can identify the Door left by locating its position on the schematic, which then links to the official BMW part number 41511875661 for the Bodywork section.
