Door, front for BMW 5 Series E12 525 (1981)

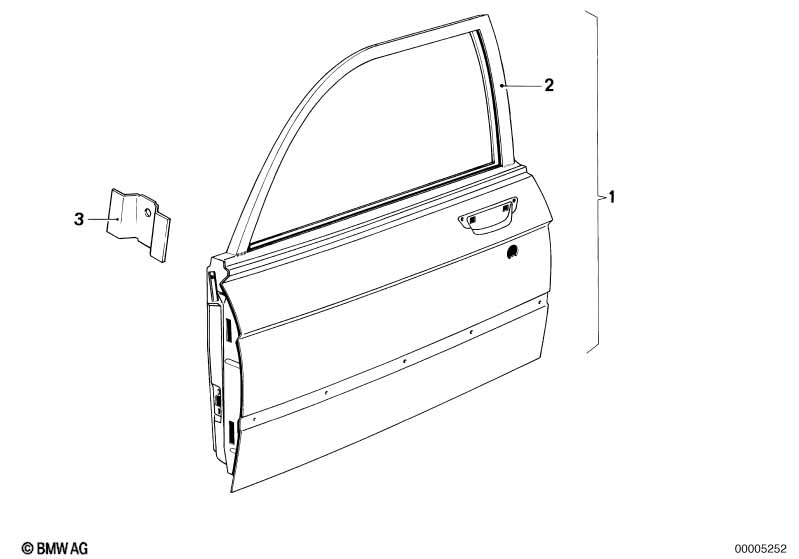

This Door, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door front left | 1 | 41511874969 | $658.44 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door front right | 1 | 41511874970 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Door front left | 1 | 41511874985 | $602.64 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door front right | 1 | 41511874986 | $658.44 | ENDED | Shop at ECS Tuning | ||||
| 02 | Window frame, front left | 1 | 41511827271 | $78.16 | ENDED | Shop at ECS Tuning | ||||
| 02 | Window frame front right | 1 | 41511827272 | ENDED | Shop at ECS Tuning | |||||
| 03 | Holder | 4 | 41511849214 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 525 Door, front?
- This technical diagram illustrates the Door, front within the Bodywork group for the 5 Series E12 525 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Door front left (Part #41511874969).
- Which models use the hardware listed in this Door, front?
- The hardware and components featured in the Door, front are specific to the 5 Series E12 525 produced during 1981. These technical specifications ensure that parts like the Door front left (41511874969) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door, front assembly?
- Each item in the Door, front corresponds to the numbered list below the illustration. For the 5 Series E12 525, you can identify the Door front left by locating its position on the schematic, which then links to the official BMW part number 41511874969 for the Bodywork section.
