Front door-hinge/door brake for BMW 6 Series E24 635CSi (1982)

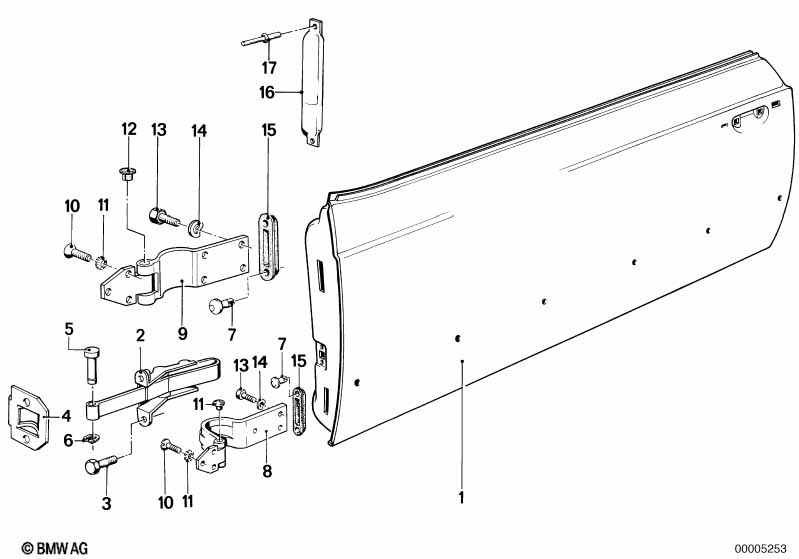

This Front door-hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door left | 1 | 05/1982 | 41511904483 | $885.05 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Door right | 1 | 05/1982 | 41511904484 | $905.54 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cable grommet | D=10/D=14 | 1 | 05/1982 | 61131363747 | $3.00 | ENDED | Shop at ECS Tuning | ||
| 01 | Door front left | 1 | 41511961233 | $1645.11 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door front right | 1 | 41511961234 | $1645.11 | ENDED | Shop at ECS Tuning | ||||
| 02 | Door brake | 2 | 41511875865 | $48.51 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X18-Z3-2 | 4 | 07119915027 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Stopper | 2 | 41511800150 | $3.87 | ENDED | Shop at ECS Tuning | ||||
| 05 | Pin | 2 | 41511875836 | $0.98 | ENDED | Shop at ECS Tuning | ||||
| 06 | Lock Ring | 2 | 51211854873 | $0.81 | Shop at ECS Tuning | |||||
| 07 | Clamp | 8 | 51211839338 | $0.53 | Shop at ECS Tuning | |||||
| 08 | Hinge left | 1 | 41511865829 | $76.49 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hinge right | 1 | 41511865830 | $76.49 | Shop at ECS Tuning | |||||
| 09 | Hinge left | 1 | 41511839963 | $125.20 | Shop at ECS Tuning | |||||
| 09 | Hinge right | 1 | 41511839964 | $125.20 | Shop at ECS Tuning | |||||
| 10 | Countersunk head screw | M8X20 | X | 07119900869 | $0.45 | Shop at ECS Tuning | ||||
| 11 | Washer | V8,4 | X | 07119936640 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 12 | Blind plug | D=8MM | 4 | 51211839913 | $0.39 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M8X20-ZNNIV SI | X | 07119903039 | Shop at ECS Tuning | |||||
| 14 | Wave washer | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Gasket | 4 | 51211843825 | $10.24 | Shop at ECS Tuning | |||||
| 16 | Cover | 2 | 05/1982 | 51211867755 | $106.86 | ENDED | Shop at ECS Tuning | |||
| 17 | Rivet | 2 | 51211869969 | $0.55 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi Front door-hinge/door brake?
- This technical diagram illustrates the Front door-hinge/door brake within the Bodywork group for the 6 Series E24 635CSi produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Door left (Part #41511904483).
- Which models use the hardware listed in this Front door-hinge/door brake?
- The hardware and components featured in the Front door-hinge/door brake are specific to the 6 Series E24 635CSi produced during 1982. These technical specifications ensure that parts like the Door left (41511904483) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front door-hinge/door brake assembly?
- Each item in the Front door-hinge/door brake corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the Door left by locating its position on the schematic, which then links to the official BMW part number 41511904483 for the Bodywork section.
