Front door-hinge/door brake for BMW 7 Series E23 728i (1986)

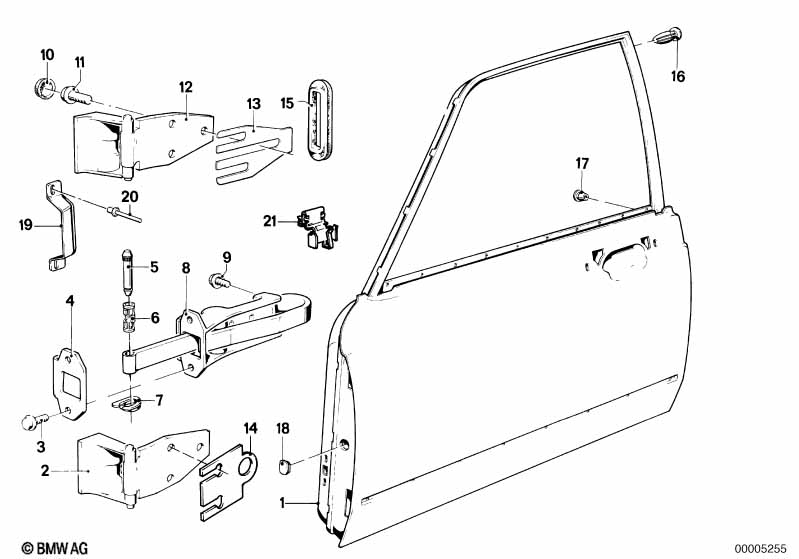

This Front door-hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door front left | 1 | 41512909123 | Shop at ECS Tuning | ||||||
| 01 | Door front right | 1 | 41512909124 | Shop at ECS Tuning | ||||||
| 02 | Hinge left | 1 | 41513905015 | Shop at ECS Tuning | ||||||
| 02 | Hinge right | 1 | 41513905016 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt with washer | M6X18-Z3-2 | 4 | 07119915027 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Stopper | 2 | 41511800150 | $3.87 | ENDED | Shop at ECS Tuning | ||||
| 05 | Pin | 2 | 51211854806 | $1.05 | Shop at ECS Tuning | |||||
| 06 | Clamp | 2 | 51211854807 | $0.53 | Shop at ECS Tuning | |||||
| 07 | Lock Ring | 2 | 51211854873 | $0.81 | Shop at ECS Tuning | |||||
| 08 | Door brake | 2 | 41511881590 | $33.13 | +core | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X16-Z3-2 | 2 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Plug | 4 | 51211800363 | $0.55 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X20-ZNNIV SI | X | 07119903039 | Shop at ECS Tuning | |||||
| 12 | Hinge left | 1 | 41513905015 | Shop at ECS Tuning | ||||||
| 12 | Hinge right | 1 | 41513905016 | Shop at ECS Tuning | ||||||
| 13 | Hinge spacer | 1,00MM | 4 | 41511801253 | $10.32 | Shop at ECS Tuning | ||||
| 13 | Hinge spacer | 0,75MM | 4 | 41511801254 | $7.49 | ENDED | Shop at ECS Tuning | |||
| 14 | Hinge spacer | 1,00MM | 4 | 41511873064 | $2.52 | Shop at ECS Tuning | ||||
| 14 | Hinge spacer | 1,0MM | 4 | 41513907182 | Shop at ECS Tuning | |||||
| 15 | Gasket | 4 | 51211807212 | $2.73 | Shop at ECS Tuning | |||||
| 16 | Blind plug | D=3,7MM | 2 | 51711850078 | $0.21 | Shop at ECS Tuning | ||||
| 17 | Blind plug | 2 | 51321840819 | $0.13 | ENDED | Shop at ECS Tuning | ||||

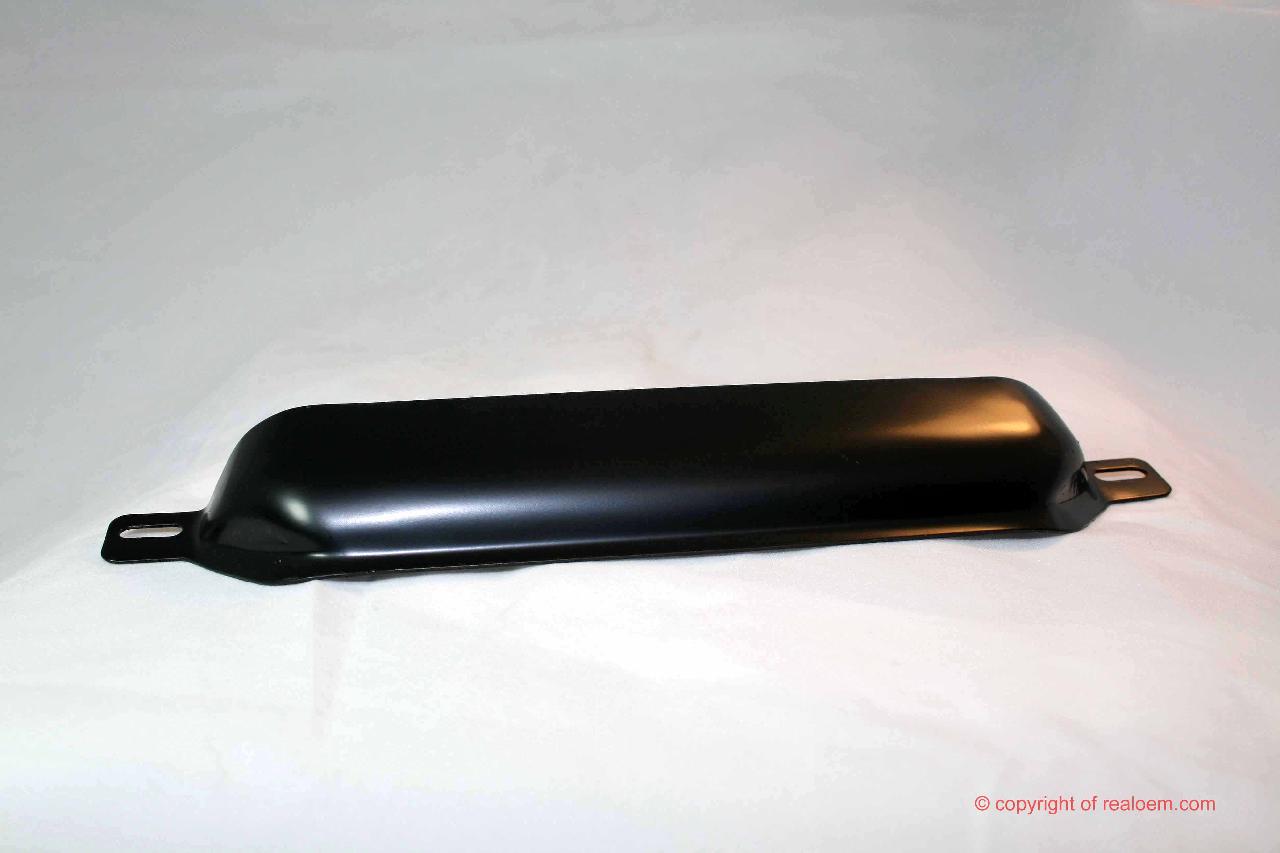

| 19 | Cover | 1 | 51211869919 | $4.64 | Shop at ECS Tuning | |||||
| 20 | Rivet | 2 | 51211869960 | ENDED | Shop at ECS Tuning | |||||
| 21 | Clamp | 1 | 51211925899 | $2.74 | Shop at ECS Tuning |
