Door weatherstrip front for BMW 3 Series E21 320i (1977)

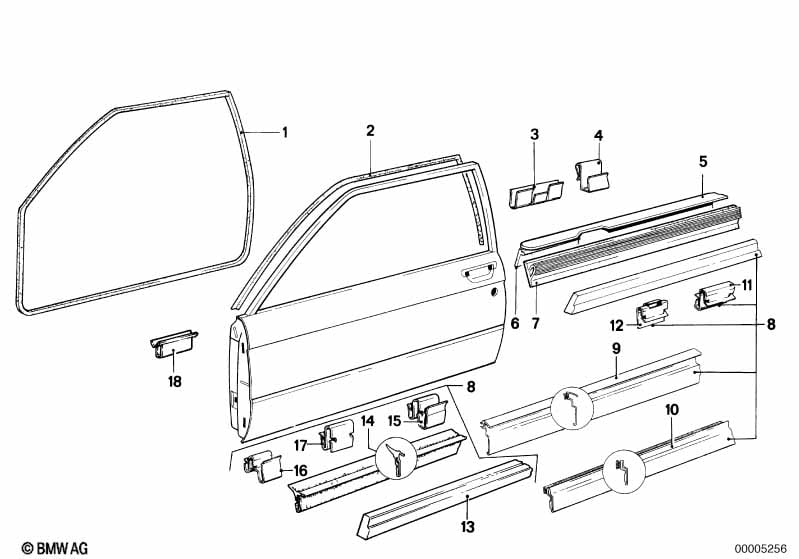

This Door weatherstrip front technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door weatherstrip left | 1 | 51711823859 | $102.77 | Shop at ECS Tuning | |||||
| 01 | Door weatherstrip right | 1 | 51711823860 | $102.77 | Shop at ECS Tuning | |||||
| 02 | Gasket left | 1 | 51211847863 | $38.97 | Shop at ECS Tuning | |||||
| 02 | Gasket right | 1 | 51211847864 | $38.97 | Shop at ECS Tuning | |||||
| 03 | Clamp | 2 | 51211864715 | $0.72 | Shop at ECS Tuning | |||||
| 04 | Clamp | X | 51211823273 | $0.83 | Shop at ECS Tuning | |||||
| 05 | Moulding, front left | 1 | 08/1979 | 51211834827 | ENDED | Shop at ECS Tuning | ||||
| 05 | Moulding, front right | 1 | 08/1979 | 51211834828 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover | 2 | 51211847057 | $3.55 | Shop at ECS Tuning | |||||
| 07 | Door weatherstrip inner | 2 | 08/1979 | 51211863493 | $13.61 | ENDED | Shop at ECS Tuning | |||
| 08 | Door weather strip outer left | 1 | 51219056511 | ENDED | Shop at ECS Tuning | |||||
| 08 | Door weather strip outer right | 1 | 51219056512 | ENDED | Shop at ECS Tuning | |||||
| 09 | Sealing lip type | 1 | 51211854293 | $38.03 | Shop at ECS Tuning | |||||
| 10 | sealing | 1 | 51211854294 | $31.61 | ENDED | Shop at ECS Tuning | ||||
| 11 | Clamp | X | 51211832822 | $0.57 | Shop at ECS Tuning | |||||
| 12 | Clamp | 2 | 51211836269 | $10.87 | Shop at ECS Tuning | |||||
| 13 | Moulding front left | 1 | 51211872005 | $70.40 | ENDED | Shop at ECS Tuning | ||||
| 13 | Moulding front right | 1 | 51211872006 | $70.40 | ENDED | Shop at ECS Tuning | ||||
| 15 | Clamp | X | 51211867969 | $0.65 | ENDED | Shop at ECS Tuning | ||||
| 17 | Clamp | X | 51211874624 | $0.57 | Shop at ECS Tuning | |||||
| 18 | Clamp | 2 | 51441805831 | $1.56 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
